In-Wall Speaker - SE-LCRSf

Speaker Grille Rectangle - MG-LCRSf - Thumbnail In-Wall Speaker - SE-LCRKE - Side Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech

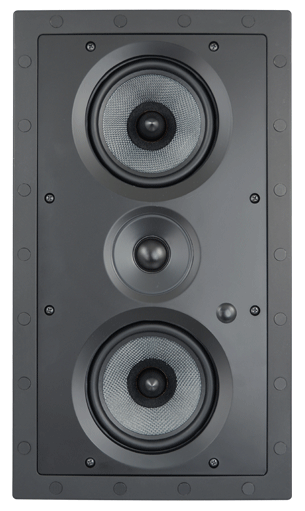

MODEL: SE-LCRSf

Dual 5-1/4" 2-way In-Wall Loudspeaker

Frameless Center / All Channel - LCRS



 DESCRIPTION
Our ArchiTech Series cones are made from genuine DuPont Kevlar® fiber, which is an exceptional choice for high performance woofers. Its incredible strength enables low distortion music reproduction, while its lightness provides great detail and musicality. And it is amazingly durable for long life and environmental stability. Kevlar® is 5 times as strong as steel of the same weight.

These unique properties have enabled Kevlar® to become a favorite material for applications as varied as bullet-proof vests, automotive parts, ropes for the Mars Pathfinder mission - and for the ArchiTech Series - cones for superb woofers.

The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.


 SPECIFICATIONS
Model Number: SE-LCRSf - 5-1/4" 2-way In-Wall Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 90dB 2.83V / 1 meter
Tweeter: 1" pivoting silk dome tweeter
Frameless Grille: Magnetically Attached, Micro-Perforated - MG-LCRSf
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Woven Kevlar® woofers with butyl rubber surrounds
Industry leading superior retro-ring mounting system
Magnetic, frameless, micro-perforated, vibration-free grille
High temperature Polyimide voice coils
Phase plug pole piece extensions
Polyswitch overdrive protection
Orient vertically or horizontally
Sold and shipped individually
12 dB/octave crossover
IR Knockouts


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" W x 15-3/4" H
Cut-out Dimensions: 7-15/16" W x 14-7/16" H x 3-1/4" Deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
