MODEL: PE-620LCRSf

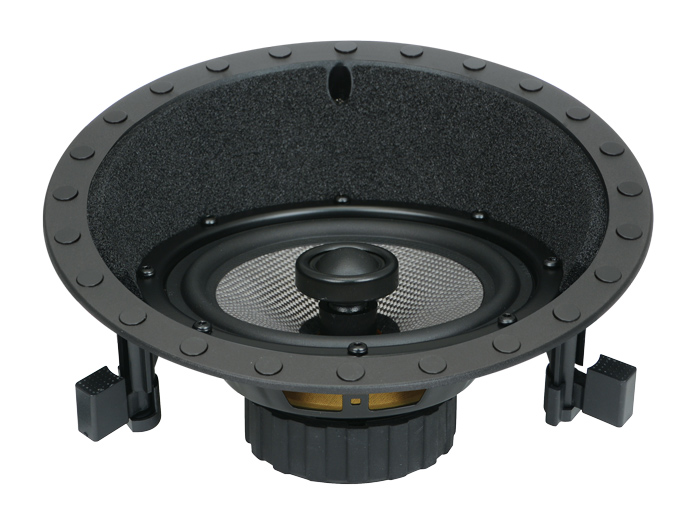

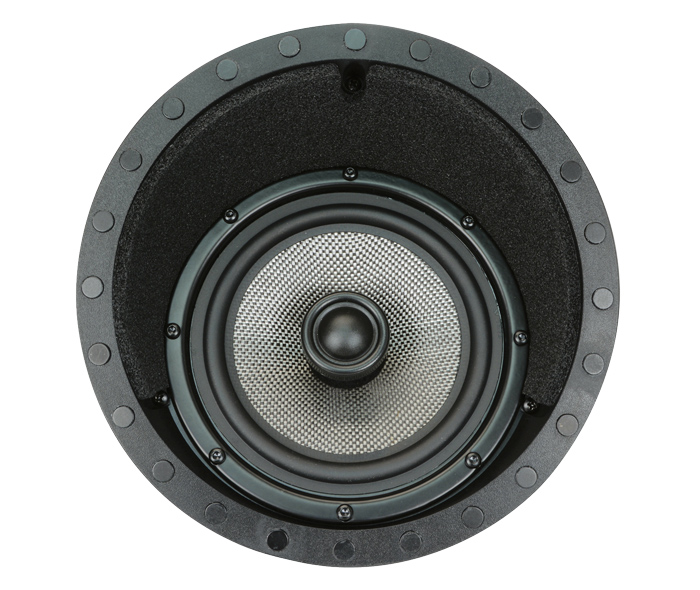

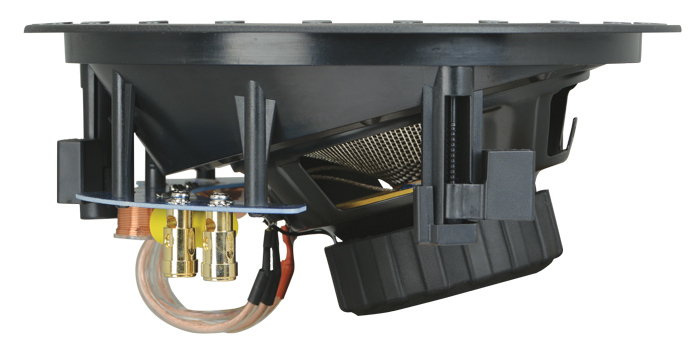

6-1/2" 2-way 15 Degree Angled LCRS In-Ceiling / Wall

Frameless



 DESCRIPTION

The new Presence Elite line represents a tireless dedication to quality and performance that Dealers can stand behind and Customers deserve!

We took our high quality mid-range line and infused it with the technological advancements and innovations from our luxury line, giving it “Elite” status. The new glass fiber woofer is rigid while still being extremely lightweight and optimally damped - allowing it to handle more power while still sounding great. These fine components are blended using a precision-tuned multi-order crossover that includes an auto-resetting tweeter overload protection switch. The sleek look of our new Presence Elite Line is nicely complimented by our super-slim 3mm grilles that have a smaller footprint and greater aesthetic acceptance than most other brands. In addition to the butyl rubber surrounds, ferro-fluid cooled silk dome tweeters, and load-balancing toggle mounting system, our signature Lifetime Limited Warranty gives you the assurance that these speakers will continue to deliver clear, crisp audio each and every day.

The PE-620LCRSf, a 15 degree angled 6-1/2" in-ceiling / wall LCRS loudspeaker, is sold individually.



 SPECIFICATIONS
Model Number: PE-620LCRSf
Frequency Response: 55Hz - 22kHz ± 3 dB
Power Handling: 45 watts nom. 90 max.
Sensitivity: 87dB 2.83 V / 1 meter
Tweeter: 1" Pivoting silk dome tweeter
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
All Weather Logo Round and Square option

Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Augmented dispersion design
Woven glass fiber woofer with butyl rubber surround
Auto-resetting tweeter overload protection switch
Ferro-fluid cooled tweeter

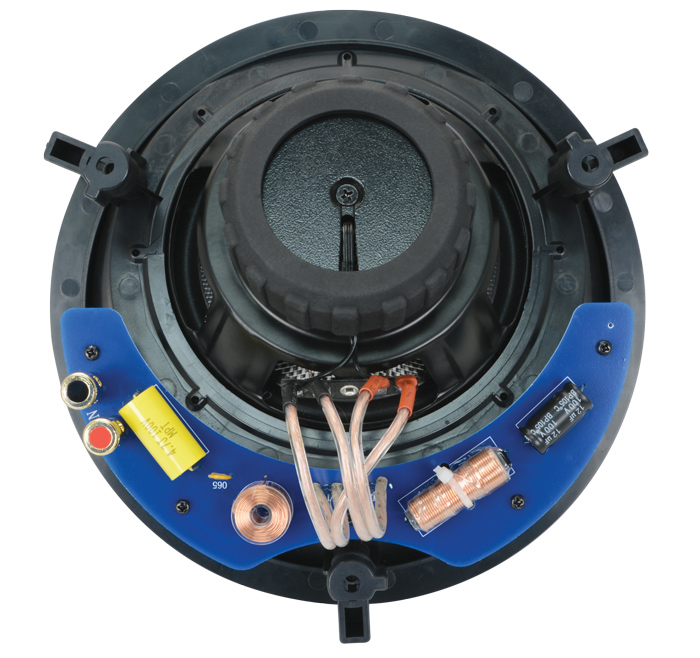

High quality multi-order crossover
Gold-plated high tension terminals fit up to 5 gauge wire
High resolution 14 gauge wire
Vibration damping easy grip motorboot
Load-balancing toggle mounting system
Far-forward mounting for open, spacious sound

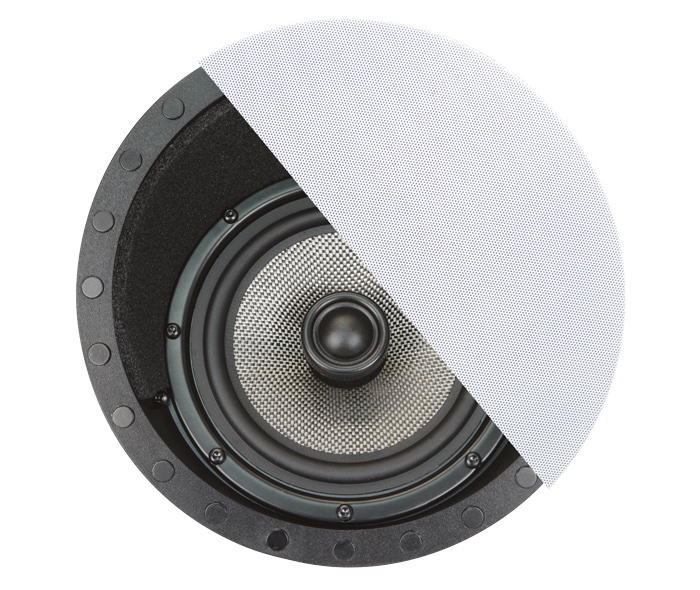

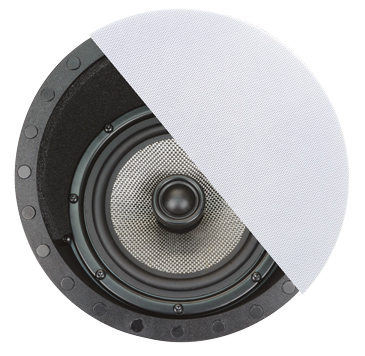

Super slim 3mm, magnetic, frameless, micro-perforated grille
Vibration free, all-weather frameless grille may be custom painted
Square grilles also available
Sold and shipped individually

 DIMENSIONS & WEIGHTS
Overall Dimensions: 9-7/8" Round
Cut-out Dimensions: 8-5/8" Round x 4-3/16" deep
Shipping Weight: N/A
Net Weight:  N/A
