Sound Terrain Landscape Speakers - SS-8M / 84G
SS-8M / 84 Green


Sound Terrain Landscape Speakers - 360 Degrees of Sound Logo


Sound Terrain Landscape Speakers - SS-8M / 84S
SS-8M / 84 Desert Sand


Downloads
SS-8M / 84 Brochure [PDF]
SS-8M / 84 Install Guide [PDF]

2 Year Limited Warranty

CEDIA and RoHS Logos

Product Line - Sound Terrain

MODEL: SS-8M / 84

8" High Performance Outdoor Speakers

Landscape Loudspeakers



 DESCRIPTION
High Performance In-ground landscape speakers.

Garden Green

SS-8MG
SS-84G (Single Point Stereo)

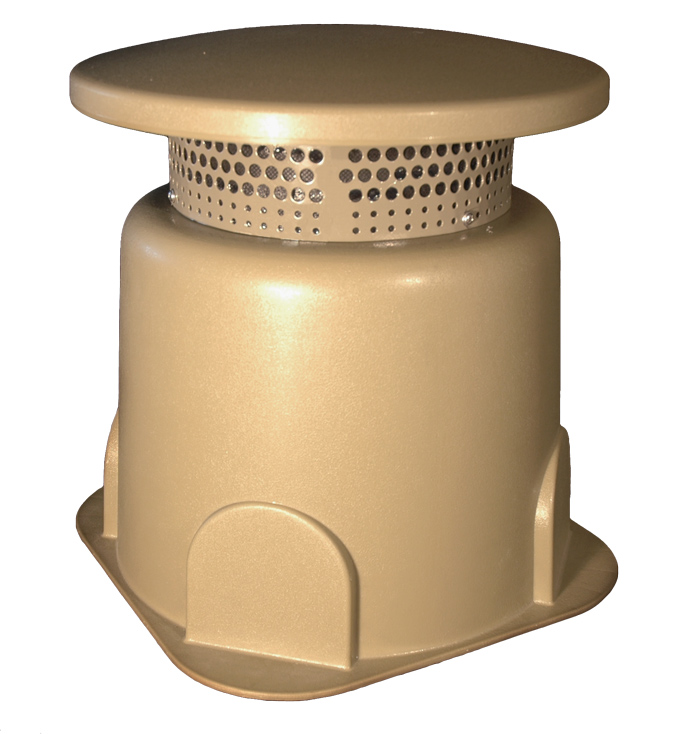

Desert Sand
SS-8MS
SS-84S (Single Point Stereo)


 SPECIFICATIONS
Model Numbers: Garden Green Desert Sand
  SS-8MG SS-8MS
  SS-84G SS-84S
Woofer: 8" polypropylene with butyl rubber surround
Frequency Response: 55Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 60 watts max.
Sensitivity: N/A
Grille: Rust proof stainless steel grille w/ integrated weather guard
Tweeter: SS-8M: 1" soft dome / SS-84: four 1/2" poly tweeters
Impedance: SS-8M: 70V w/ 8-ohm position / SS-84: 8 ohms nominal
Available Colors: Garden Green and Desert Sand


 FEATURES
Weatherproof design
 Includes 3 meters of cable rated for in-ground burial (2 conductor SS-8M and 4 conductor SS-84)
Unit designed to be buried in-ground, approx. 8" above ground exposure
360 degree sound field

SS-8M MONO VERSION
70 volt transformer included, mounted internally with wattage taps of 16, 8, 4 & 2 watts
       + 8-ohm position
Unit is shipped set at 8 ohms
For commercial applications, 70 volt transformer setting is easily accessed with a screwdriver

SS-84 SINGLE POINT STEREO VERSION
One unit produces both left and right channels
Dual voice coil 8" poly woofer with butyl rubber surround
Separate left & right 1/2" poly dome tweeters



 DIMENSIONS & WEIGHTS
Overall Dimensions: Height - 14"
  Base - 13" x 13" with 3" radius corners
  Top - 13" Round

Shipping Weight: SS-8M - 14 lbs.
  SS-84 - 15 lbs.

Net Weight:  SS-8M - 11 lbs.
  SS-84 - 12 lbs.
