In-Ceiling Speaker - SC-502E

Speaker Grille Round - Thumbnail

Downloads


Lifetime Limited Warranty


CEDIA and RoHS Logos

Product Line - Architech - Premium Series

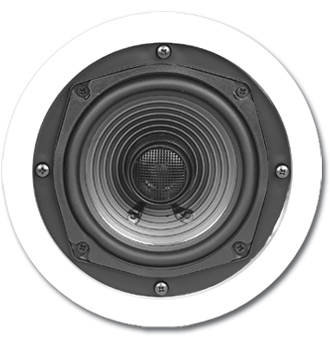

MODEL: SC-502E

5-1/4" 2-way In-Ceiling Loudspeaker



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

The SC-502E is a 5-1/4" round 2-way In-Ceiling Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SC-502E - 5-1/4" 2-way Round In-Ceiling Loudspeaker
Frequency Response: 50Hz - 20kHz ± 3 dB
Power Handling: 30 watts nom. 60 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting dome tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:


 FEATURES
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 7-1/2" Round
Cut-out Dimensions: 6-1/2" Round x 2-3/8" deep
Shipping Weight: N/A
Net Weight:  N/A
