In-Ceiling Speaker - SC-602f


Frameless Speaker Grille - MGR-6f - Thumbnail
MGR-6f
Frameless Speaker Grille - MGS-6f - Thumbnail
MGS-6f
In-Ceiling Speaker - SC-602f - Side Thumbnail

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

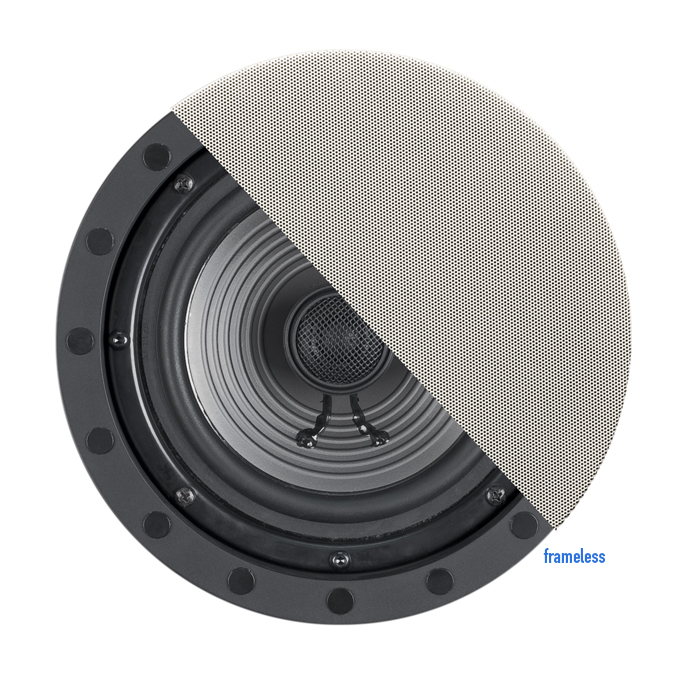

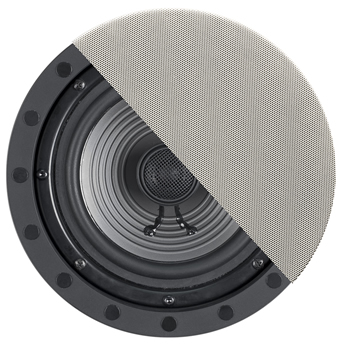

MODEL: SC-602f

6-1/2" 2-way In-Ceiling / Wall Loudspeaker

Frameless

(Discontinued)



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The grille may be painted to match mounting surface.

The SC-602f is a 6-1/2" round 2-way In-Ceiling / Wall Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SC-602f - 6-1/2" 2-way Round In-Ceiling / Wall
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting dome tweeter
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
All Weather Logo Round and Square option

Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Frameless Grille
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-7/16" Round
Cut-out Dimensions: 7-1/4" Round x 3-5/16" deep
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 22"x15"x12"
Master Carton Weight: 16 lbs.
Master Carton Quantity: 2 pair
Inner Carton Dimensions: 16"x12"x12"
Inner Carton Weight: 8 lbs.
