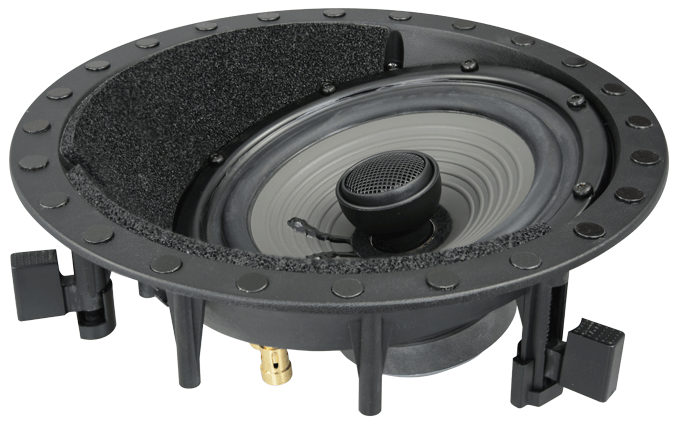

6-1/2" 2-way 15 Degree Angled Loudspeaker
Frameless
(Discontinued)
The ArchiTech Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.
ArchiTech Premium 6-1/2” in-ceiling 15 Degree Angled speakers allow you to direct high quality audio toward the listening area. |
| Model Number: |
SC-602LCRSf - 6-1/2" Frameless 2-way 15 Degree Angled |
| Frequency Response: |
45Hz - 20kHz ± 3 dB |
| Power Handling: |
40 watts nom. 80 max. |
| Sensitivity: |
87dB 1 watt / 1 meter |
| Tweeter: |
3/4" mylar soft dome pivoting tweeter |
| Frameless Grille: |
Magnetically Attached - Micro-Perforated Stainless Steel |
 |
Round and Square option |
| |
Round Model: MGR-8f Square Model: MGS-8f
|
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIR-8 |
| Vapor Dome / Pre-Con Bracket: |
VPD-8 |
| Bridge for T-Bar Ceiling: |
PB-8 |
| Plenum Dome: |
PE-8 |
| |
|
 Poly woofers with butyl rubber surrounds |
| Load-balancing toggle mounting system |
| Augmented dispersion design |
| Magnetic, frameless, micro-perforated, vibration-free grille |
| Ferro-fluid cooled tweeter |
| 12 dB/octave crossover |
| Sold and shipped in individually |
| |
| Overall Dimensions: |
9-7/8" Round
|
| Cut-out Dimensions: |
8-5/8" Round x 4-3/16" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
| |
|
| Master Carton Dimensions: |
24"x14"x14" |
| Master Carton Weight: |
15 lbs. |
| Master Carton Quantity: |
3 each |
| Inner Carton Dimensions: |
14"x8"x14" |
| Inner Carton Weight: |
5 lbs. |
| |
|
|
