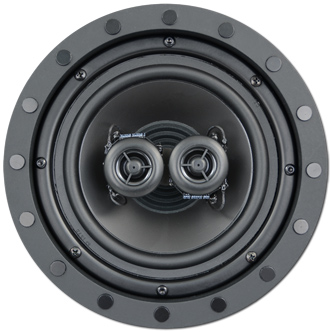

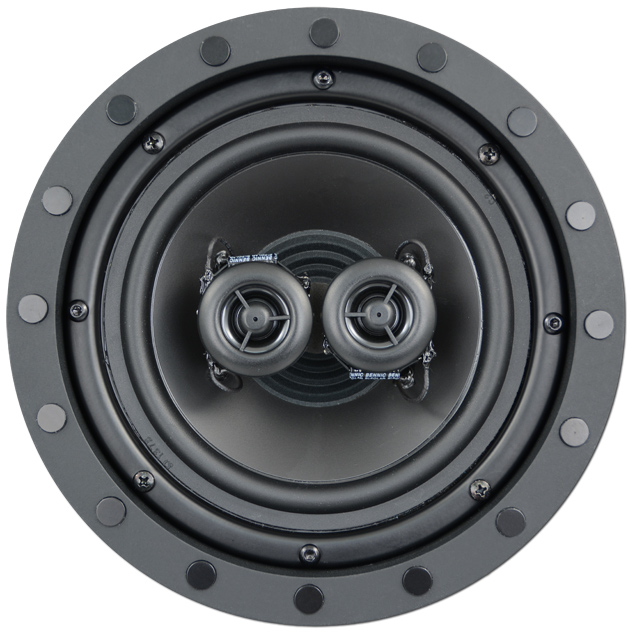

MODEL: SC-62f

6-1/2" 2-way Single Point Stereo In-Ceiling / Wall

Frameless



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

The ArchiTech Premium 6-1/2” in-ceiling custom installation single point stereo speakers combine the full frequency audio experience of 2 separate audio speakers but in a single space-saving chasis. The SC-62f is the right solution where space is limited but sound quality cannot be sacrificed. High quality materials ensure long life and great performance.


 SPECIFICATIONS
Model Number: SC-62f - 6-1/2" Frameless 2-way Single Point Stereo
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max. both channels combined
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: Dual (left & right) 3/4" Mylar ferro-fluid cooled dome tweeters
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
High temperature Aluminum voice coils
Magnetic, frameless, micro-perforated, vibration-free grille
Sold and Shipped in Individually


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-7/16" Round x 3-1/2" deep
Cut-out Dimensions: 7-1/4" Round x 3-5/16" deep
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 22"x16"x12"
Master Carton Weight: 20 lbs.
Master Carton Quantity: 4 each
Inner Carton Dimensions: 12"x8"x12"
Inner Carton Weight: 5 lbs.
