In-Wall Speaker - SE-891E

Speaker Grille Rectangle - Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

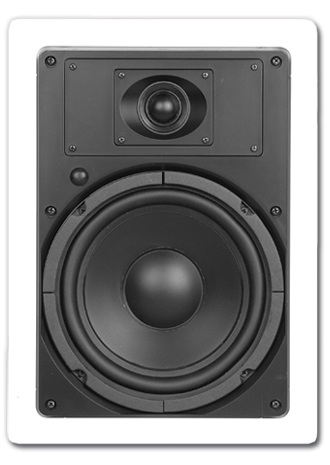

MODEL: SE-891E

8" 2-way In-Wall Loudspeaker



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

The SE-891E is a 8" Rectangular 2-way In-Wall Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SE-891E - 8" 2-way Rect. In-Wall Loudspeaker
Frequency Response: 35Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" pivoting textile dome tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome:


 FEATURES
Poly woofers with butyl rubber surrounds
Industry Leading Superior Clamp-ring Mounting System
IR knockout
Poly-switch overdrive protection
12 dB/octave crossover
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 10-1/2" W x 14-1/2"H
Cut-out Dimensions: 9" W x 13" H x 2-15/16" D
Shipping Weight: N/A
Net Weight:  N/A
