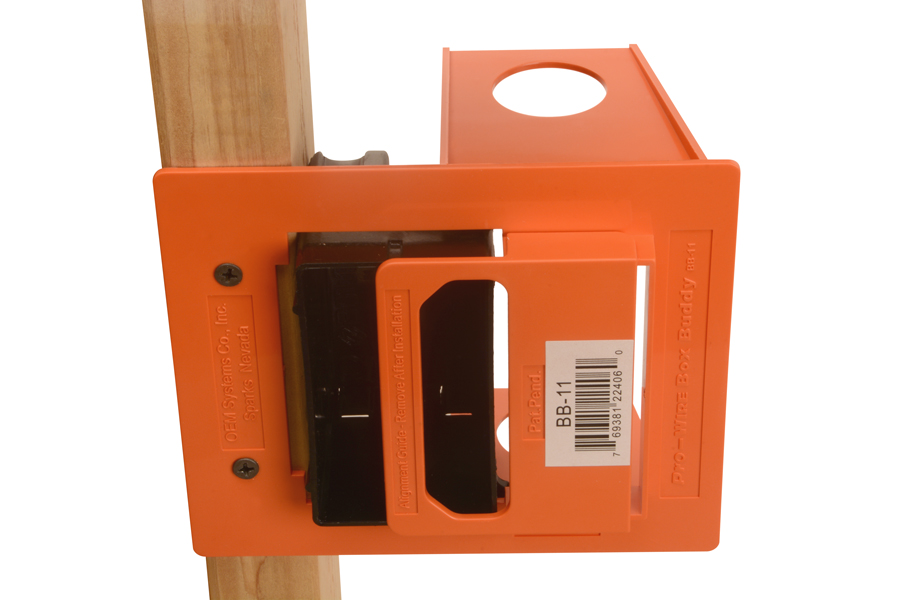

BB-11 with
Alignment Tool
|

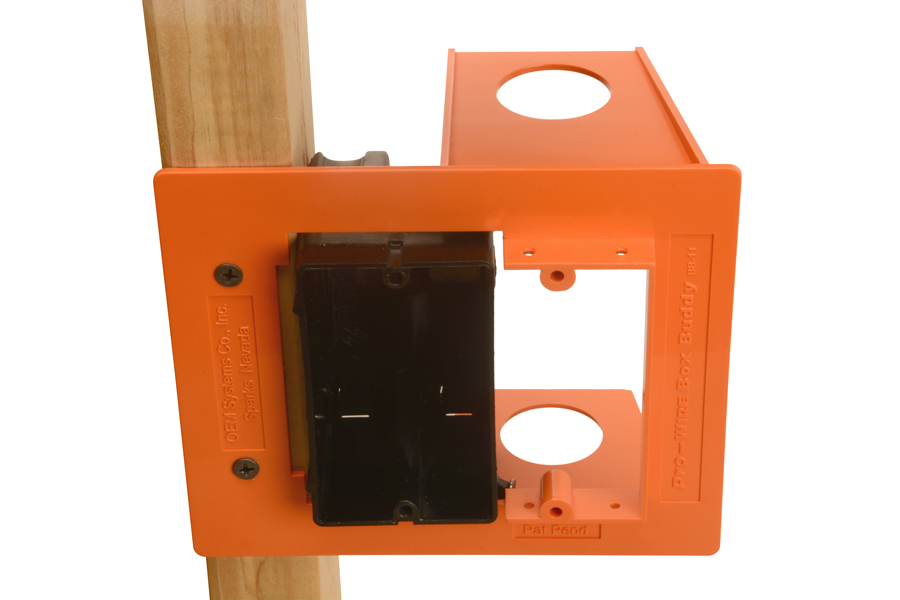

BB-11 without
Alignment Tool
|
Downloads
WARRANTY
Lifetime Limited Warranty |
 |
 |
MODEL: BB-11
Low Voltage Mounting Ring
| Box Buddy® low voltage mounting rings are designed for positioning low voltage devices next to 110 VAC electrical boxes with standard NEC spacing so that the combined 110 and low voltage device(s) may be covered with one multi-gang coverplate for an elegant appearance. The Box Buddy® uses a patent pending pull-off alignment tool that makes combined installation and alignment of 110 VAC and low voltage devices simple and quick. Box Buddy® low voltage mounting rings feature conduit flanges off-set by 5/8" which enable unobtrusive use of conduit connectors. |
 Add 1 Low Voltage device to a 1 Gang 110 VAC Box |
| Made from ABS flame retardant plastic, UL 94V-0 compliant |
| Sold and shipped individually |
| |
| Dimensions: |
6-1/2" W x 5-1/2" H x 3-7/8" D,
(165W x 140H x 98D)mm |
| Cut Out: |
4-1/8" W x 3-11/16" H |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
