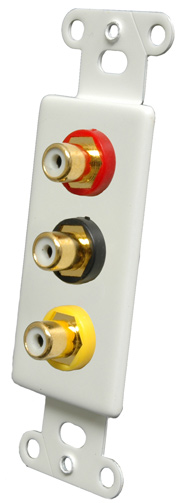

Pro-Wire Jack Plate - IWM-3RG

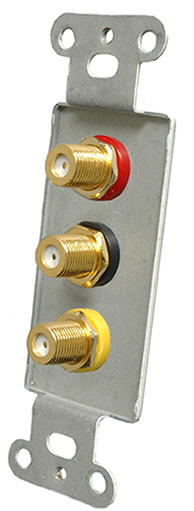

Pro-Wire Jack Plate - IW-3RG - Back Thumbnail

Downloads

Lifetime Limited Warranty


CEDIA and RoHS Logos

Product Line - Pro-Wire

MODEL: IWM-3RG

RCA Jack Plates

3 Gold Plated RCA Jacks with 3 Rear-Mounted "F" Jacks (Coaxial Type)



 DESCRIPTION
Inlet / Outlet Jack for Line-level Signals Solderless. Durable Metal Plate Construction
3-front mounted RCA Jacks (left, right & video) with rear-mounted "F" Type COAX connectors.
Gold Plated surfaces assure long life and freedom from corrosion.

Gold plated - Premium SOLDERLESS "F" style Backs

1 red, 1 black & 1 yellow RCA JACK with "F" type COAX backs for "line level" audio and video signals. F-connector accepts both RG-59 and RG-6 coaxial cables with attached
F-connectors.  For solderless connection.

Solderless Logo


 SPECIFICATIONS
Model Number: IWM-3RG - RCA Jack Plates

Pre-Made / In-Stock Available Colors:
Pro-Wire Jack Plate - Special Colors w i laPro-Wire Jack Plate - Special ColorsWhite, Ivory (i), Almond (a), Black (bk), Brown (bn) & Gray (g)


 INSTALLATION NOTES
or similar shielded type co-ax cable. Refer to technician if in doubt.
WARNING: Improper wiring may damage electronic components!

 RELATED ITEMS


 DIMENSIONS
Pro-Wire Blank Plate Dimensions - Thumbnail
