PB-6 T-bar Bridge
Formed sheet-metal T-bar bridge
to reinforce T-bar drop ceilings
for installation of all 6-1/2" round speakers. Use with the twist-lock PE-8
Plenum Dome (shown below) for
Fire Rated applications.
 PB-6: Hole / Cut-Out Size: 7-5/8"
Sold and shipped individually
 |
 |
| |
|
 |
PB-8 T-bar Bridge
Formed sheet-metal T-bar bridge
to reinforce T-bar drop ceilings
for installation of all 8" round speakers. Use with the twist-lock PE-8 Plenum Dome (shown below) for
Fire Rated applications.
PB-8: Hole / Cut-Out Size: 8-13/16"
Sold and shipped individually
|
|
| |
|
 |
PW-6 Joist Bridge
Formed sheet-metal bridge for installation of all 6-1/2" round speakers. Use with the twist-lock PE-8 Plenum Dome (shown below) for
Fire Rated applications. The PW-6 mounts directly to joists.
PW-6: Hole / Cut-Out Size: 7-9/16"
Sold and shipped individually
|
| |
|
| |
|
|
 |
PW-8 Joist Bridge
Formed sheet-metal bridge for installation of all 8" round speakers. Use with the twist-lock PE-8 Plenum Dome (shown below) for
Fire Rated applications. The PW-8 mounts directly to joists.
PW-8: Hole / Cut-Out Size: 8-13/16"
Sold and shipped individually
|
| |
|
| |
|
|
 |
PE-8 Plenum Dome
Steel Plenum Dome for Fire
Rated applications. Includes EMT
knock-outs for easy twist lock
assembly when using with PB-6 & PB-8. Use withT-bar bridge in
drop ceilings. Fits both the PB-6 and PB-8
Depth: 4-1/2"
Sold and shipped individually
|
| |
|
|
|
| |
|
|
 |

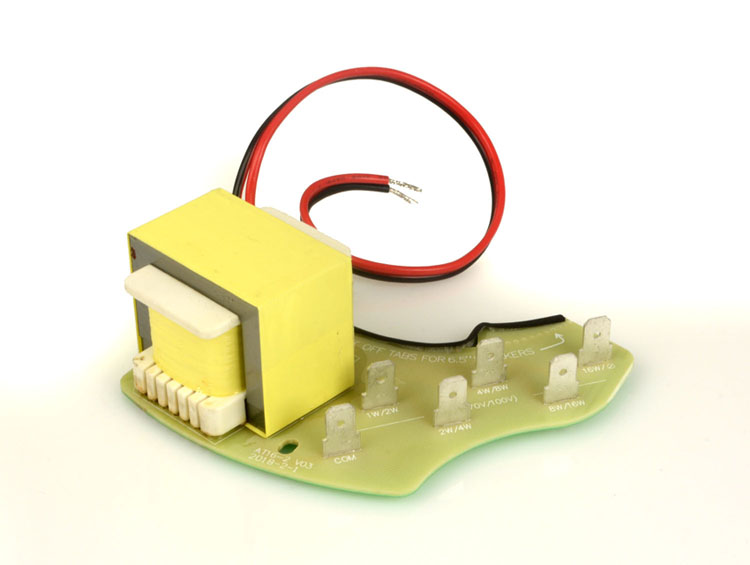

AT-16PCBa 70 / 100 Volt Transformer
PCB mounted, fits most OEM 6-1/2" and 8" in-ceiling models
1, 2, 4, 8, & 16 watt taps
Frequency Response: 20Hz - 20kHz ± 1 dB
Overall Dimensions:4-1/4" L x 3-1/4" W x 1-1/2" H
Sold and shipped individually
|
| |
|
|
|
| |
|
|
 |
AT-16 70 / 100 Volt Transformer
Fits 2 1/4" to 2 1/2" mounts
1, 2, 4, 8, & 16 watt taps
Frequency Response: 20Hz - 20kHz ± 1 dB
Overall Dimensions: 1-3/4" x 1-5/8" x 1-1/2" wide
Sold and shipped individually
|
| |
|
|
|
| |
|
|
 |

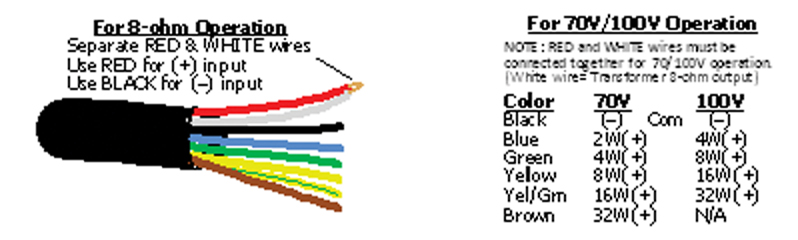

AT-32 70 / 100 Volt Transformer
Fits 2 1/4" to 2 5/8" mounts
1, 2, 4, 8, 16 & 32 watt taps
Frequency Response: 20Hz - 20kHz ± 1 dB
Overall Dimensions: 2" x 1-5/8" x 1-11/16" wide
Sold and shipped individually
|
| |
|
|
| |
|
|
