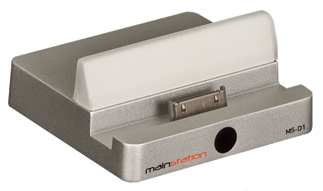

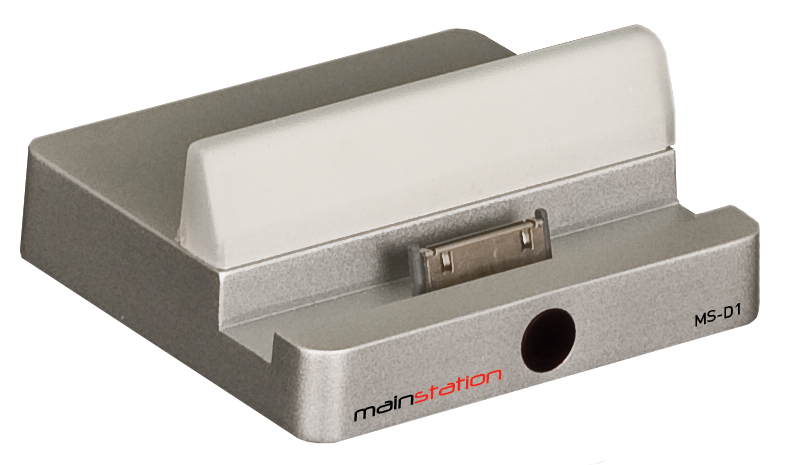

MODEL:MS-D1
Docking Station w/ Apple 30-pin Connector
Docking Station with Apple 30-pin Connector. Compatible with iPod, iPhone, iPads 30-pin connectors. Compatible with the latest generation iPods and iPhones with the use of a
Lightning 9-pin adapter.
|
Model Number: |
MS-D1 |
Connections: |
3.5mm 4-Conductor Phone Plug & Mini-B USB |
Audio Output: |
(0dB Reference): 830mVrms |
Video Output: |
Composite NTSC 1Vp-p, 75 ohm |
|
|
Power Supply: |
|
Input power: |
AC 100-240V (50/60Hz) O.5A |
Output power: |
5Vdc, 2.1A max |
|
|
Compatible with Apple® iPod, iPhone, and iPads with 30-pin connectors. |
Compatible with the latest generation iPods and iPhones with the use of a |
Lightning 9-pin adapter. |
Play Audio / Video files and view pictures through your AV entertainment system. |
Sync automatically to your computer via the supplied USB cable. |
Charge automatically via included AC adapter or charge-capable USB jacks. |
3.5mm Stereo Audio output jack |
Composite Video output jack |
Mini-B USB Connector. |
Wireless Infrared Remote Control |
Silver Finish |
The MS-D1 is sold with the following accessories:

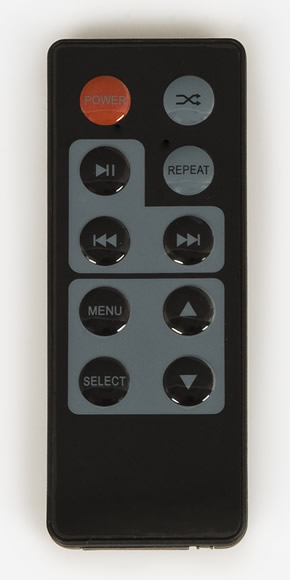

![Mainstation In Wall Audio Docking Station - MS-D1 - Remote Control](assets/products/ms_d1/accessories/remote_thumb.jpg)
Remote Control
|
![Mainstation In Wall Audio Docking Station - MS-D1 - RCA Cables](assets/products/ms_d1/accessories/rca_thumb.jpg)
RCA Cables
|

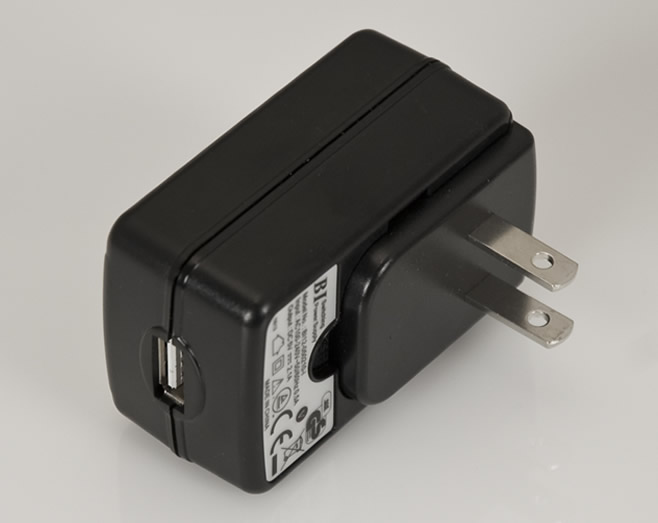

![Mainstation In Wall Audio Docking Station - MS-D1 - AC Adapter](assets/products/ms_d1/accessories/power_supply_thumb.jpg)
AC Adapter |
![Mainstation In Wall Audio Docking Station - MS-D1 - USB Cable](assets/products/ms_d1/accessories/usb_thumb.jpg)
USB Cable |
![Mainstation In Wall Audio Docking Station - MS-D1 - Support Caps](assets/products/ms_d1/accessories/caps_thumb.jpg)
Support Caps |
Dimensions (WxHxD): |
472mm x 28.5mm x 68mm (2-7/8" x 1-1/4" x 2-5/8") |
|
|
Shipping Dimensions: |
N/A |
Shipping Weight: |
N/A |
Net Weight (Dock only): |
156g (5.5oz.) |
|
