In-Wall Speaker, 2 way, 5-1/4 inch - A-525


Rectangle Speaker Grille - Thumbnail

Downloads


CEDIA and RoHS Logos



MODEL: A-525 *Discontinued*

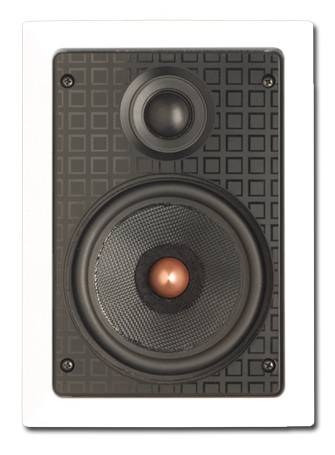

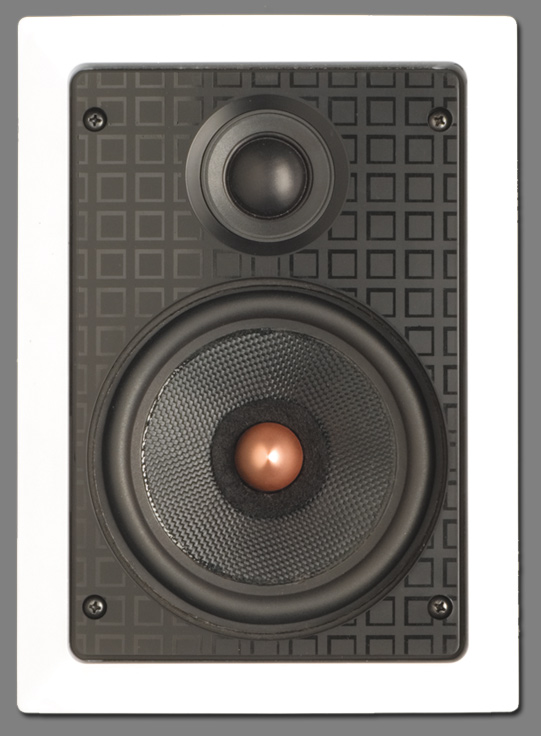

5-1/4" 2-way In-Wall Loudspeaker



 DESCRIPTION
Presence represents a new level of performance and value in In-Wall and Ceiling loudspeakers.
Our signature Lifetime Limited Warranty ushers in these straight forward no-nonsense loudspeaker systems. Practical engineering and the best materials available are present throughout this comprehensive and well thought-out product line. The Presence line is known namely by its cones made from genuine DuPont Kevlar® fiber with butyl rubber surrounds & ferro-fluid cooled silk dome tweeters. Midrange drivers, thick fiberglass crossover network PC boards populated with high-grade electronic components, over-drive tweeter protection, heavy gauge oxygen-free copper wiring and stout gold plated high tension connection terminals are other features of the Presence line.


 SPECIFICATIONS
Model Number: A-525 - 5-1/4" 2-way Rect. In-Wall Loudspeaker
Frequency Response: 50Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" Silk soft dome pivoting tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
Phase plug pole piece extensions
High-grade crossovers
Polyswitch overdrive protection
Industry Leading Superior Clamp-ring Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 6-3/4" W x 9-3/8" H
Cut-out Dimensions: 5-1/2" W x 8-3/16" H x 2-3/8" deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
