In-Ceiling Speaker, 2 way, 15 degree, 6-1/2 inch - A-6LCRS



Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

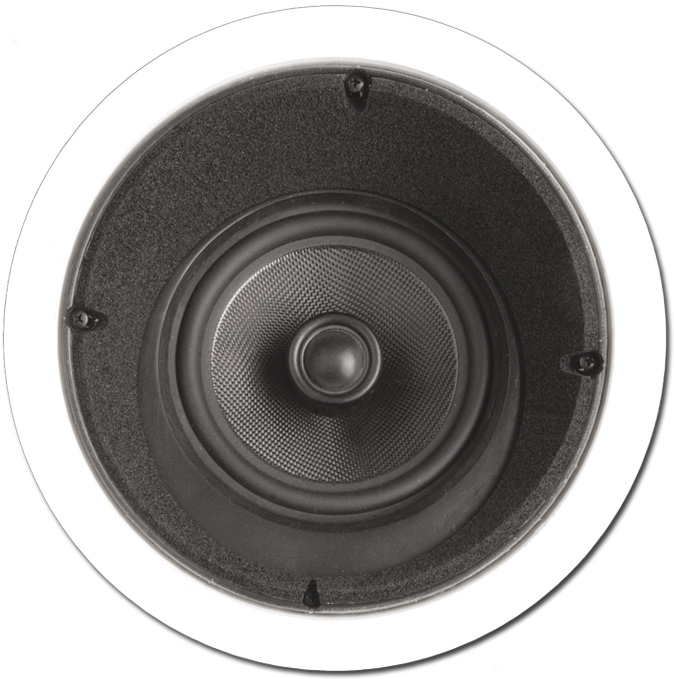

MODEL: A-6LCRS *Discontinued*

6-1/2" 2-way 15 Degree Angled Loudspeaker



 DESCRIPTION
Presence represents a new level of performance and value in In-Wall and Ceiling loudspeakers.
Our signature Lifetime Limited Warranty ushers in these straight forward no-nonsense loudspeaker systems. Practical engineering and the best materials available are present throughout this comprehensive and well thought-out product line. The Presence line is known namely by its cones made from genuine DuPont Kevlar® fiber with butyl rubber surrounds & ferro-fluid cooled silk dome tweeters. Midrange drivers, thick fiberglass crossover network PC boards populated with high-grade electronic components, over-drive tweeter protection, heavy gauge oxygen-free copper wiring and stout gold plated high tension connection terminals are other features of the Presence line.


 SPECIFICATIONS
Model Number: A-6LCRS - 6-1/2" 15 Degree Angled Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" Silk soft dome pivoting tweeters
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
High-grade crossovers
Polyswitch overdrive protection
Proven Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eaches


 DIMENSIONS & WEIGHTS
Overall Dimensions: 10-3/4" Round
Cut-out Dimensions: 9-1/4" Round x 5" deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
