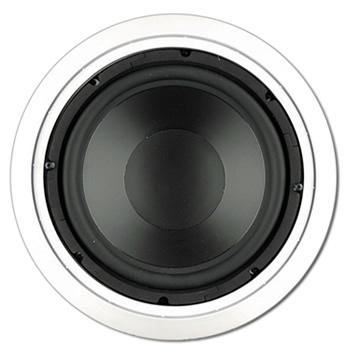

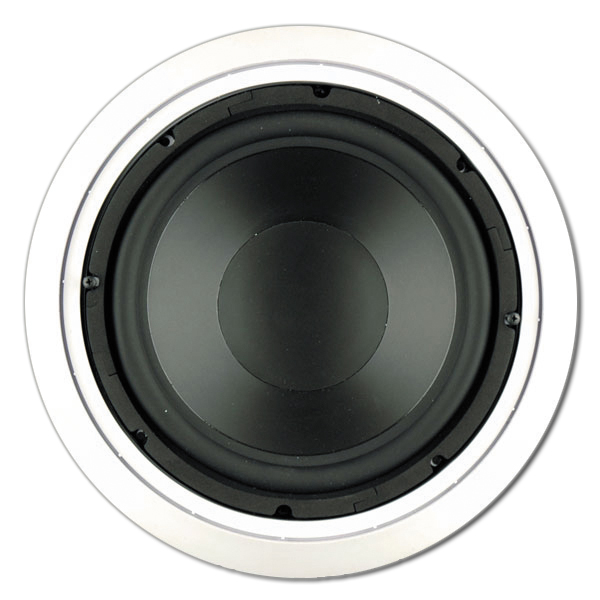

MODEL: C-10SW-KIT
10" Round In-Ceiling Subwoofer
Mounting Bracket Included

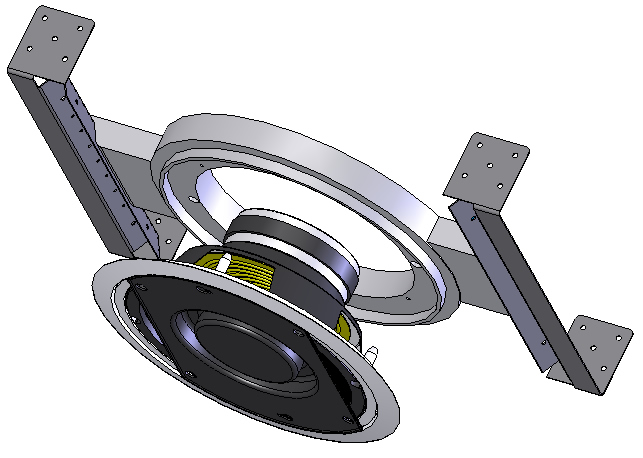

The C-10SW In-Ceiling Subwoofer together with MB-C10 mounting bracket system has been designed to mount directly to 16" O.C. & 24" O.C. wooden frame construction members (ceiling joists and trusses).
The C-10SW 10" woofer assembly & MB-C10 combination mounting & pre-construction bracket are also sold separately so that they may be purchased and installed during different phases of construction. The integrated system weighs approximately 11 pounds, which is much too heavy to be suspended overhead in sheetrock especially when taking into consideration the punishing excursions the 10" long-throw woofer is capable of.
For the sake of safety, the system is designed such that the entire assembly is mounted directly to the structure’s framing members. It actually reinforces the sheetrock by unitizing the assembly and the structure’s framing together.
Primarily designed for “new construction." It may also be retro-fitted into existing construction after the sheetrock is in place when the other side is accessible. The structural mouting bracket may be installed from above the sheetrock.
The MB-C10 consists of five separate pieces and two different types of screws. There are two pairs of steel mounting rails supplied. One pair 14.5" long to span 16" OC members and one pair 22.5" long to span 24” OC members. These fasten to the framing members with screws.

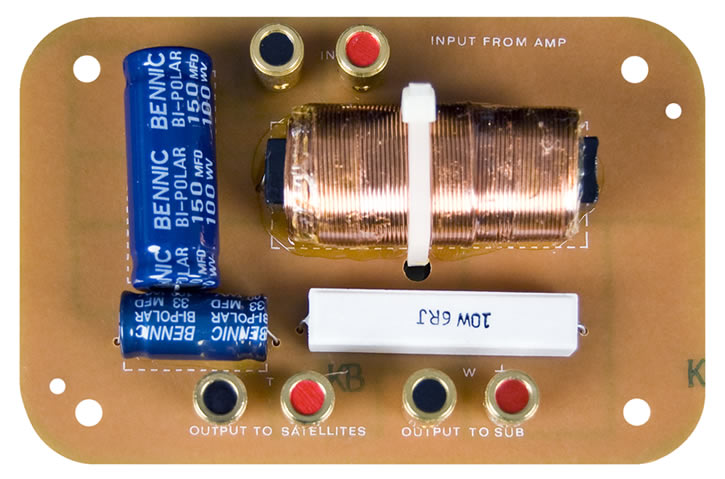

The MODEL 10-MX (Modular Crossover) is a 100Hz Passive Crossover with speaker level inputs and both high and low pass outputs for directly driving a subwoofer and a satellite speaker. It may be attached to a nearby stud inside of the wall or behind your receiver. (not included with subwoofer) |
| Model Number: |
C-10SW 10" Round In-Ceiling Subwoofer |
| Woofer: |
10" long-throw polypropylene driver with butyl surround |
| Frequency Response: |
32Hz - 200 Hz (System Response) |
| Power Handling: |
125 watts nom. 250 max |
| Sensitivity: |
87dB 1 watt / 1 meter |
| Grille: |
Perforated Metal Grille: MGR-815 |
| Impedance: |
8 ohms nominal |
| Pre-Construction Bracket: |
MB-C10 Required |
| |
|
  Paintable grille and frame to match your decor |
| Looks identical to the A-8LCRS with grille on |
| Sold and Shipped in Eachs |
| |
| Overall Dimensions: |
12-7/8" diameter
|
| Cut-out Dimensions: |
11-1/2" diameter |
| Mounting Depth: |
4-5/8" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
