MODEL: PE-W620LCRSf

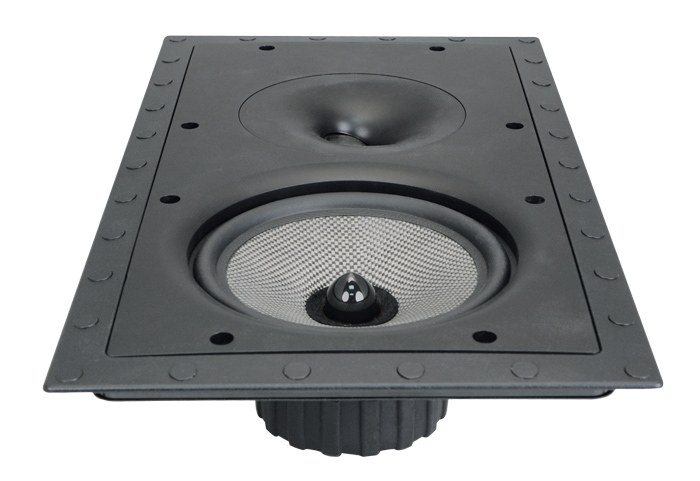

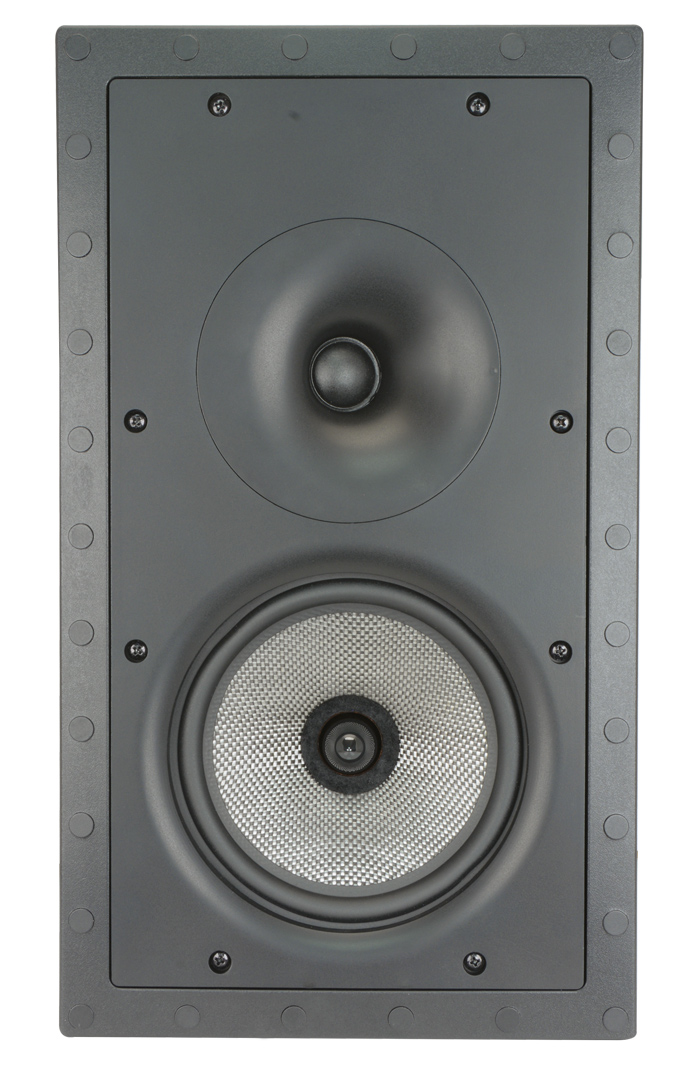

6-1/2" 2-way In-Wall LCRS Loudspeaker with Rotating Waveguide

Frameless



 DESCRIPTION
The new Presence Elite line represents a tireless dedication to quality and performance that Dealers can stand behind and Customers deserve!

We took our high quality mid-range line and infused it with the technological advancements and innovations from our luxury line, giving it “Elite” status. The new glass fiber woofer is rigid while still being extremely lightweight and optimally damped - allowing it to handle more power while still sounding great. These fine components are blended using a precision-tuned multi-order crossover that includes an auto-resetting tweeter overload protection switch. The sleek look of our new Presence Elite Line is nicely complimented by our super-slim 3mm grilles that have a smaller footprint and greater aesthetic acceptance than most other brands. In addition to the butyl rubber surrounds, ferro-fluid cooled silk dome tweeters, and load-balancing toggle mounting system, our signature Lifetime Limited Warranty gives you the assurance that these speakers will continue to deliver clear, crisp audio each and every day.

The innovative cross-axis rotating waveguide on the PE-W620LCRSf allows the tweeter to operate a full octave lower than conventional dome tweeters while simultaneously reaching more than a half octave higher in frequency. Therefore, the tweeter is able to cover more of the critical voice range, create a much smoother off-axis listening experience, and eliminate the midrange-hole that is commonly experienced with conventional designs.

The PE-W620LCRSf, a rectangular 6-1/2" 2-way in-wall LCRS loudspeaker with rotating waveguide, is sold individually.


 SPECIFICATIONS
Model Number: PE-W620LCRSf
Frequency Response: 50Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 86dB 2.83 V / 1 meter
Tweeter: 25mm Rotating waveguide silk dome tweeter
Frameless Grille: Magnetically Attached, Micro-Perforated - MG-LCRSf
Impedance: 6 ohms nominal
Pre-construction Bracket:


 FEATURES
Precision-tuned woven glass fiber woofer with butyl rubber surround
Rotating waveguide With 15° increments and high efficiency silk dome tweeter
Phase optimizing thermal pinnacle
Auto-resetting tweeter overload protection switch

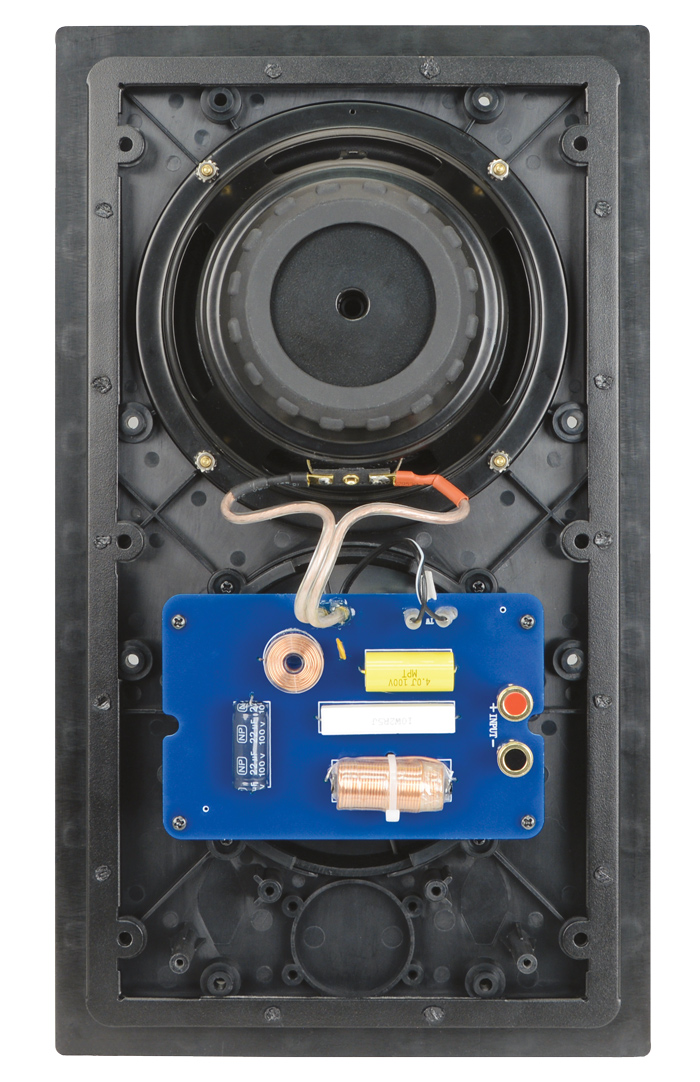

High quality multi-order crossover
Gold-plated high tension terminals fit up to 5 gauge wire
Vibration damping easy grip motorboot
Orient vertically or horizontally
Industry leading superior clamp-ring mounting system

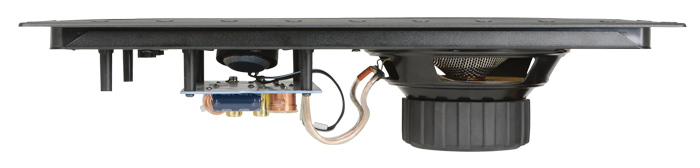

Far-forward mounting for open, spacious sound

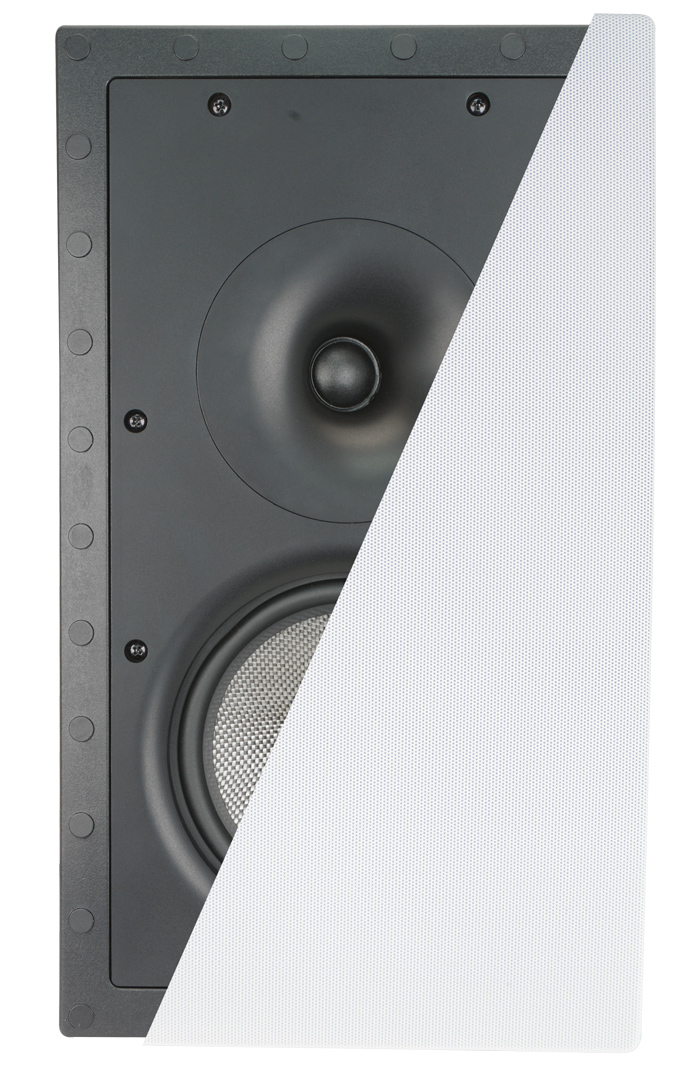

Super slim 3mm, magnetic, frameless, micro-perforated grille
Vibration free, all-weather frameless grille may be custom painted
Sold and shipped individually


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" W x 15-3/4" H
Cut-out Dimensions: 7-15/16" x 14-7/16" x 3-1/8" Deep
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 25"x16"x14"
Master Carton Weight: 26 lbs.
Master Carton Quantity: 3 each
Inner Carton Dimensions: 18"x12"x8"
Inner Carton Weight: 8 lbs.
