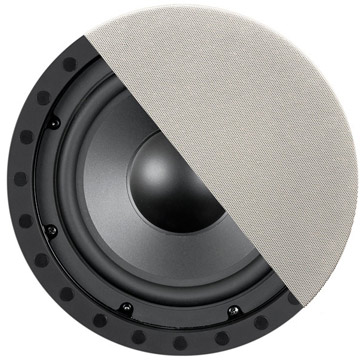

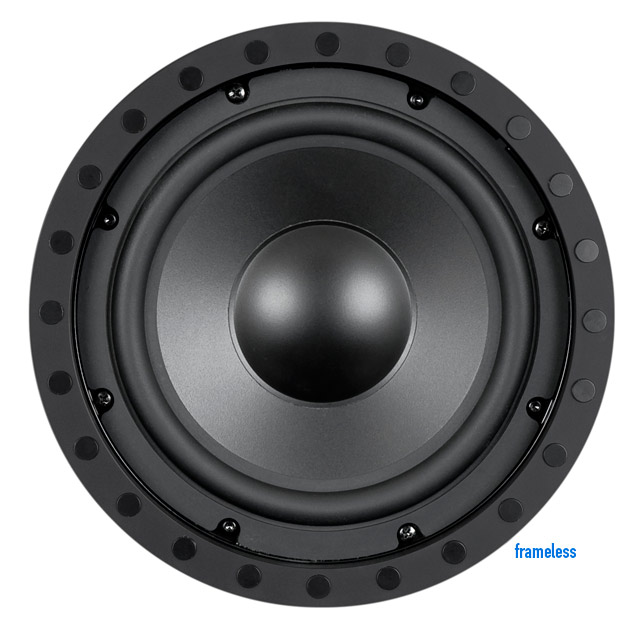

MODEL: SE-80SWf

8" In-Wall / Ceiling Subwoofer

Frameless



 DESCRIPTION


 SPECIFICATIONS
Model Number: SE-80SWf - 8" 2-way Round In-Ceiling / Wall
Frequency Response: 30Hz - 120Hz
Power Handling: 100 watts nom. 150 max.
Sensitivity: 85 dB 1 watt / 1 meter
Impedance: 4 ohms nominal
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles

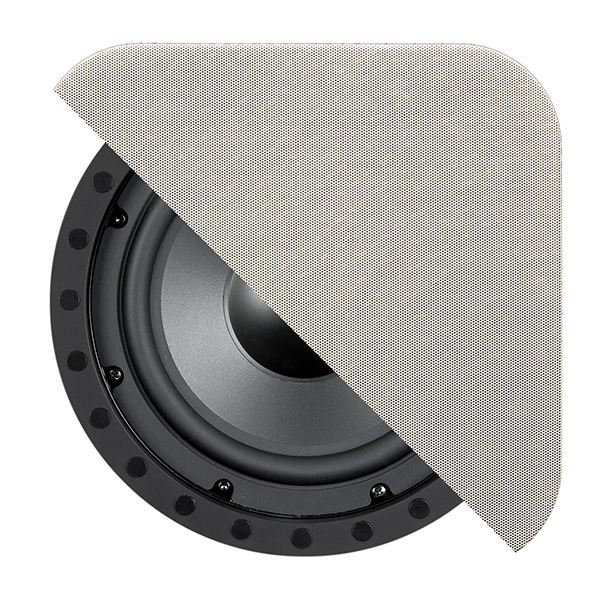

All Weather Speaker Grille Logo Round (SE-80SWf-RD) or Square (SE-80SWf-SQ) option

Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Frameless Grille
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
Grilles may be painted to match mounting surface
Sold and shipped individually


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9-7/8" diameter
Cut-out Dimensions: 8-5/8" diameter x 3-7/8" deep
Shipping Weight: N/A
Net Weight:  7.25 lbs
