Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.

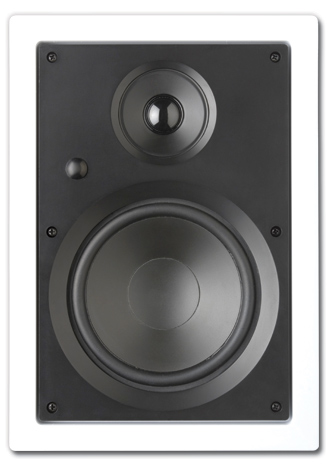

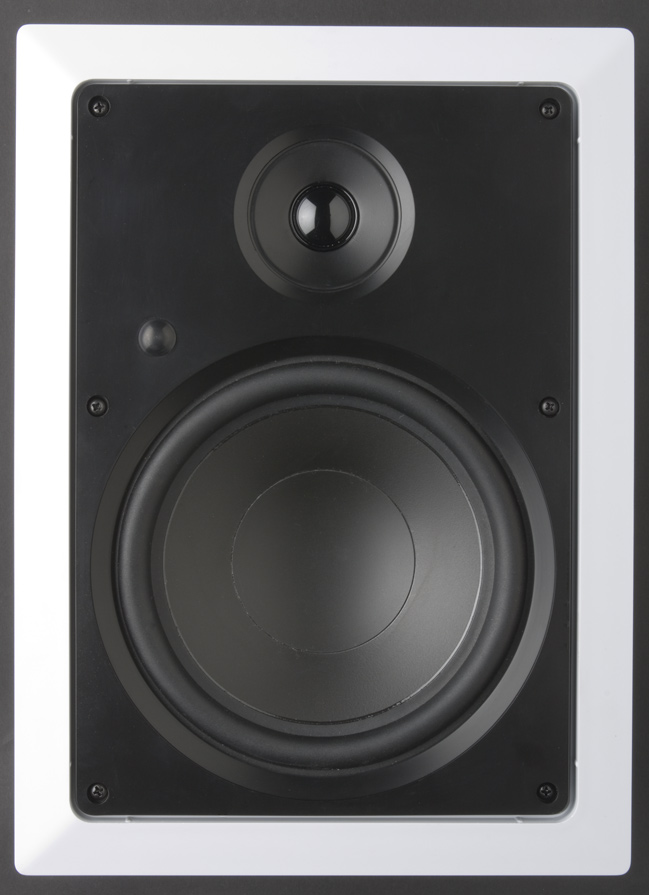

The AP-602 is a 6-1/2" rectangular 2-way In-Wall Loudspeaker, sold in pairs. |
| Model Number: |
AP-602 - 6-1/2" 2-way In-Wal Loudspeaker |
| Frequency Response: |
45Hz - 20kHz ± 3 dB |
| Power Handling: |
50 watts nom. 100 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
1" lens-free aluminized ferro-fluid cooled |
| |
pivoting dome tweeter |
| Grille: |
Perforated Metal Grille: MG-62 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIB-62 |
| |
|
 Poly woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| Mounting provision for IR device |
| High temperature Aluminum voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Pairs |
| |
| Overall Dimensions: |
9-1/16" W x 12-3/4" H
|
| Cut-out Dimensions: |
8" W x 11-3/4" H x 3-1/4" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
