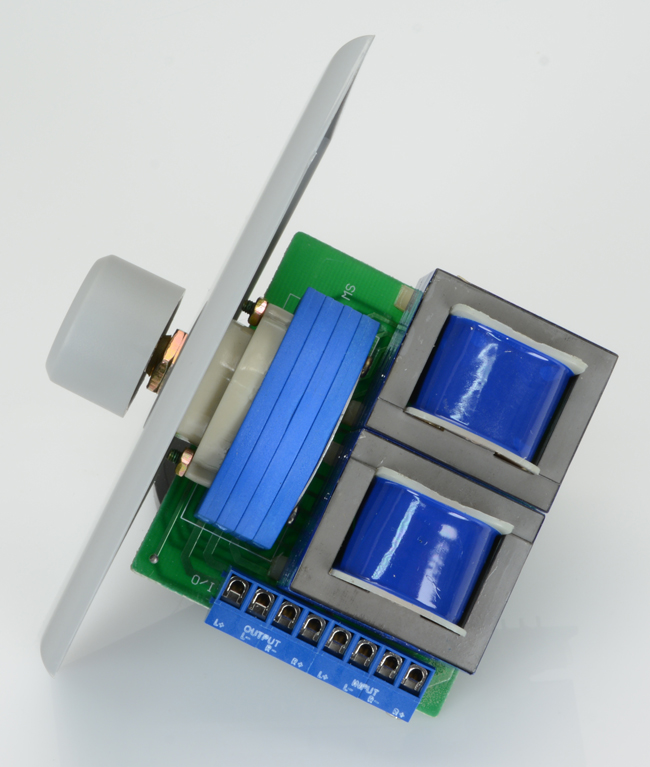

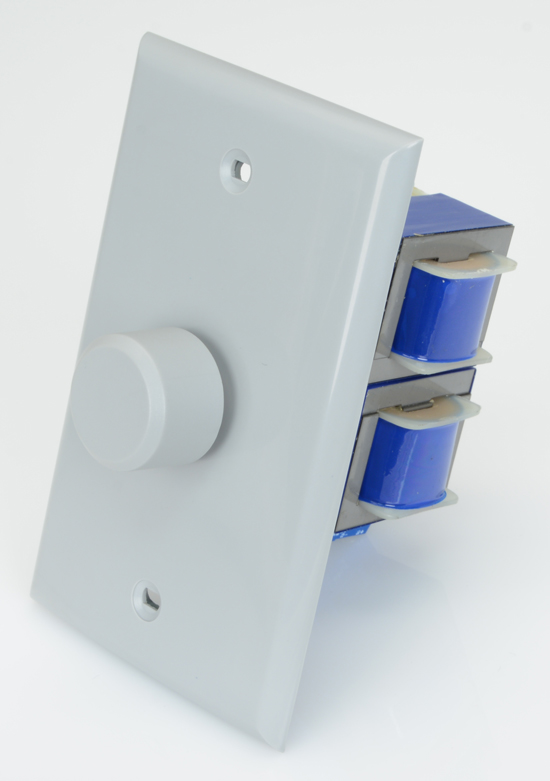

MODEL: AW-IMP100WV (Discontinued)

Outdoor In-Wall Rotary Volume Control

Impedance Matching

DESCRIPTION

The AW-IMP100WV 100 watt outdoor in-wall impedance matching volume control can be configured to maintain a safe system load when multiple controls and speakers are connected. These controls utilize autoformers to efficiently transfer the power from amplifier to speaker. Autoformers are the electrical equivalent to a gearbox in an automobile with each of the 12 volume positions a different gear. It is common to use these controls with outdoor landscape speakers.

SPECIFICATIONS

Model Number:	AW-IMP100WV Outdoor / In-wall Rotary - Impedance Matching
Frequency Response:	20-20 kHz +/- 0.5dB
Available Colors:	Gray
Power Handling:	100 watts max per channel
Impedance:	Optimized for 8 ohm speakers

FEATURES

Impedance Matching Autoformer w/ Rotary 12 position switch

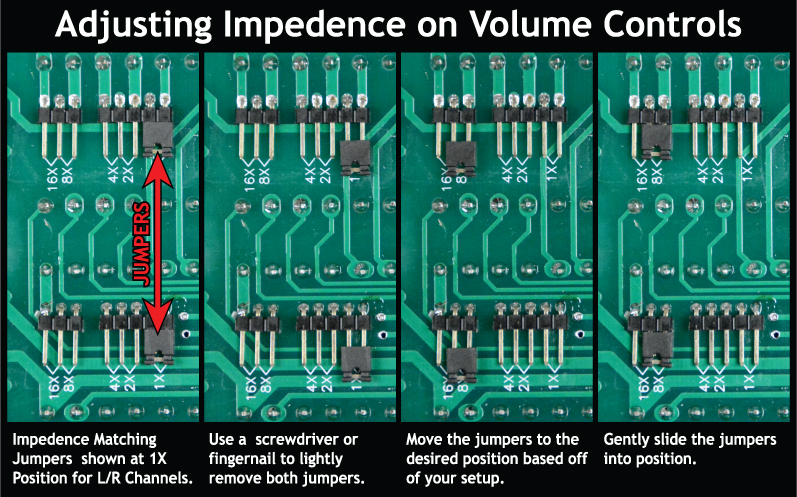

1X, 2X, 4X, 8X & 16X impedance multiplier

1X position allows use in ordinary applications

Protects amplifier by maintaining safe impedance

Smooth transition between volume steps

12-tap, high-grade 100-watt autoformer

Quick-Connect Euro Plugs make hook-up a breeze

Gasket & Screws Included

Suitable for residential & commercial applications

Sold and Shipped Individually

DIMENSIONS & WEIGHTS

Overall Dimensions:	N/A
Mounting Dimensions:	2-5/8" D
Shipping Weight:	1.1 lbs
Actual Weight:	0.95 lbs
