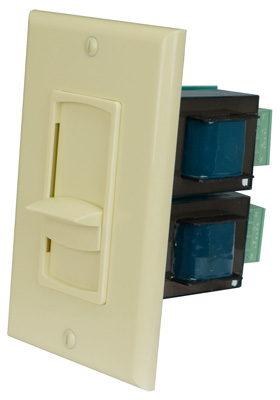

VX-100 (shown with jumpers)
Diagram for Adjusting Impedence
|
 |
 |
MODEL: VX-100 *Discontinued*
Indoor Slider Volume Control
Impedance Matching
The IW-100WV and the XL-100 are 100 watt indoor in-wall volume controls. The IW-IMP100W and VX-100 are impedance matching versions of these same controls that are configurable for maintaining a safe system load when multiple controls and speakers are connected. These controls utilize autoformers to efficiently transfer the power from amplifier to speaker. Autoformers are the electrical equivalent to a gearbox in an automobile with each of the 12 volume positions a different gear. It is common to locate these controls in the same room as the speakers.
The VX-100 lets you have music throughout your home. You can have speakers and a volume control in one room and have the rest of your system in another. |
| Model Number: |
VX-100 Sliding Volume Control - Impedance Matching |
| Frequency Response: |
20-20 kHz +/- 0.5dB |
| Available Colors: |
Ivory & Almond |
| Power Handling: |
100 watts max |
| Impedance: |
Optimized for 8 ohm speakers |
| |
|
 Impedance Matching Autoformer w/ Sliding 12 position switch |
| 1X, 2X, 4X, 8X & 16X impedance multiplier |
| Smooth transition between volume steps |
| 12-tap, high-grade 100-watt autoformer |
| Quick-connect Euro connectors make hook-up a breeze |
| Decorator wallplate included |
| Sold and Shipped Individually |
| |
| Overall Dimensions: |
N/A |
| Mounting Dimensions: |
3-1/4" D |
| Shipping Weight: |
1.3 lbs |
| Actual Weight: |
1.1 lbs |
|
