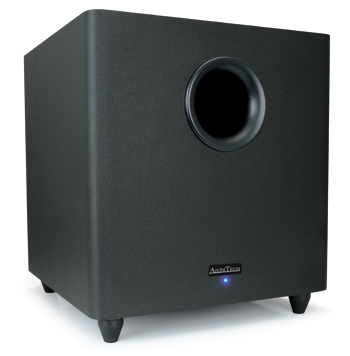

Air-Bus Wireless Subwoofer - AB-800

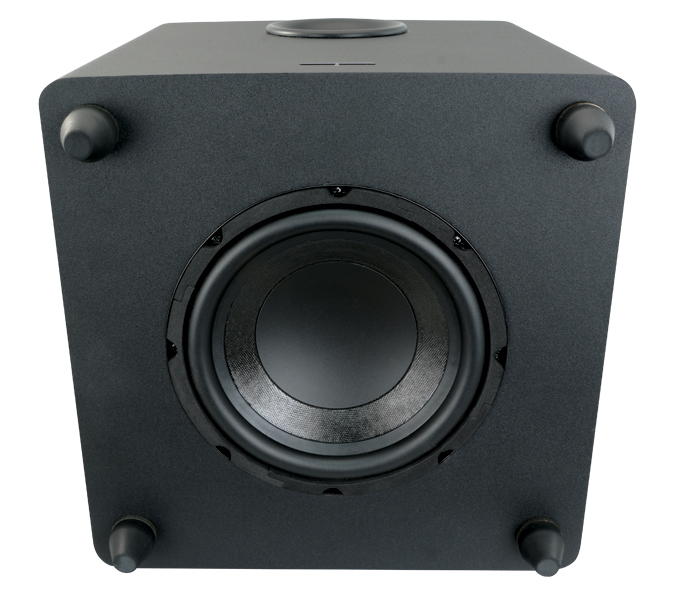

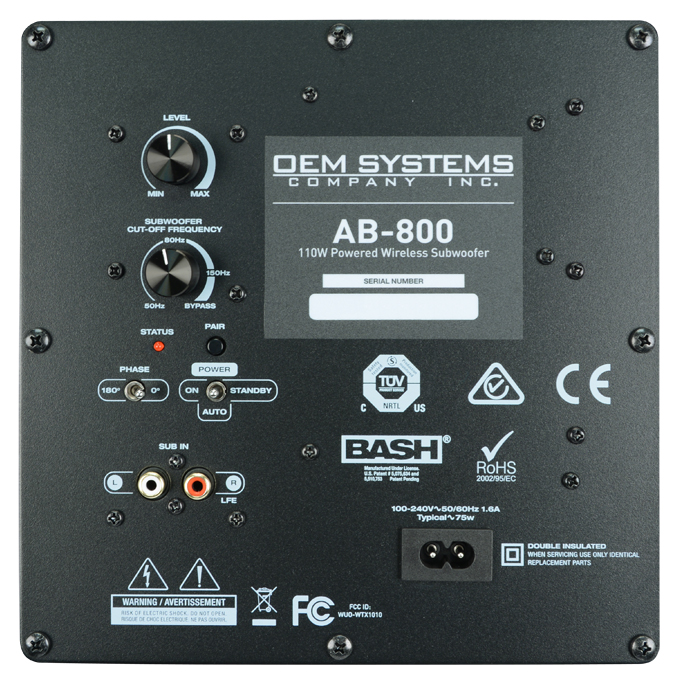

Wireless Subwoofer - AB-800 - Underside Wireless Subwoofer - AB-800 - Control Panel
AB-Tx
Lossless Wireless Transmitter
(Sold Separately)

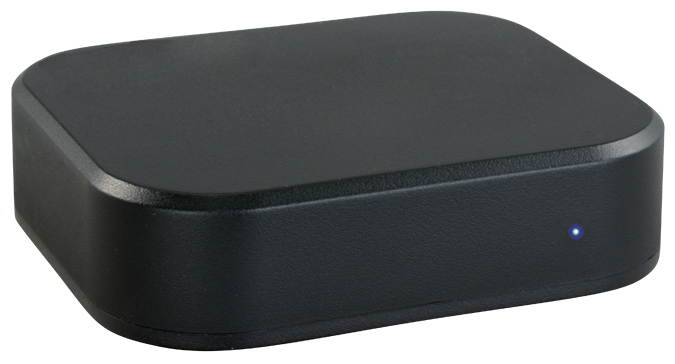

Air-Bus Wireless Transmitter - AB-TX

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech

MODEL: AB-800

110W 8" Down-Firing Subwoofer

Wireless Receiver Built-In



 DESCRIPTION
The AB-800 Powered Subwoofer utilizes patented amplifier technology and careful driver and system design. The result is an affordable, high-performance wireless subwoofer that delivers true, deep bass to any system, and is modest in size.

Designed to blend in with room decor, the AB-800 is even finished with a non-reflective matte black polyvinyl to eliminate reflections during home theater presentations. Making sure the low-bass energy generated by the AB-800 is optimally supported, four adjustable rubber feet provide proper acoustic isolation.


 SPECIFICATIONS
Model Number: AB-800 - Wireless 110W 8" Down-Firing Subwoofer
Frequency Response: 27Hz - 200Hz ± 3 dB
Crossover Frequency: 50Hz – 200Hz variable (with bypass position)
Phase Adjustment: 0 – 180 degrees (selectable)
Amplifier Output Power: 110 watts, with thermal and clipping limiters
Audio Inputs: Summing stereo line level (RCA x2)
  LFE (RCA shared with right input connector)
Input Impedance: Line level – 20k ohms, unbalanced
Input Power:
Input Power Connection:
Power Modes:
Auto Off Delay:


 FEATURES
Extra-long-throw, heavy-duty driver
Laboratory-tuned for true,deep-bass performance
Automatic International Voltage
Built-in lossless wireless receiver (AB-Tx transmitter sold separately)
Modest size hides in any room
Lossless, 2.4 gHz Frequency-Stepping Wireless Technology
Non-reflective black matte finish
Low turbulence port
Sold and Shipped in Individually


 DIMENSIONS & WEIGHTS
 AB-800
Overall Dimensions: 13" W x 13" H x 13" D (without feet)
Shipping Dimensions: 19" W x 19" H x 21" D
Shipping Weight: 31 lbs (14.06 kg)
Net Weight:  23 lbs (10.43 kg)

 DIMENSIONS & WEIGHTS
 AB-Tx
Overall Dimensions: 4.5" W x 1.25" H x 4" D
Shipping Dimensions: 9" W x 3" H x 5" D
Shipping Weight: 1 lb (0.45 kg)
Net Weight:  0.25 lb (0.11 kg)
