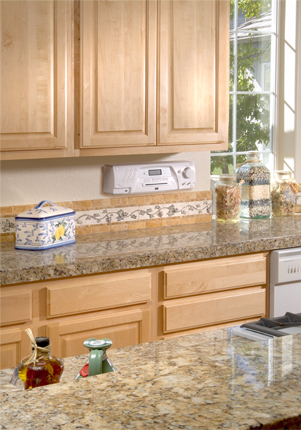

In-Wall Audio - IW-SYS3 - Kitchen Display

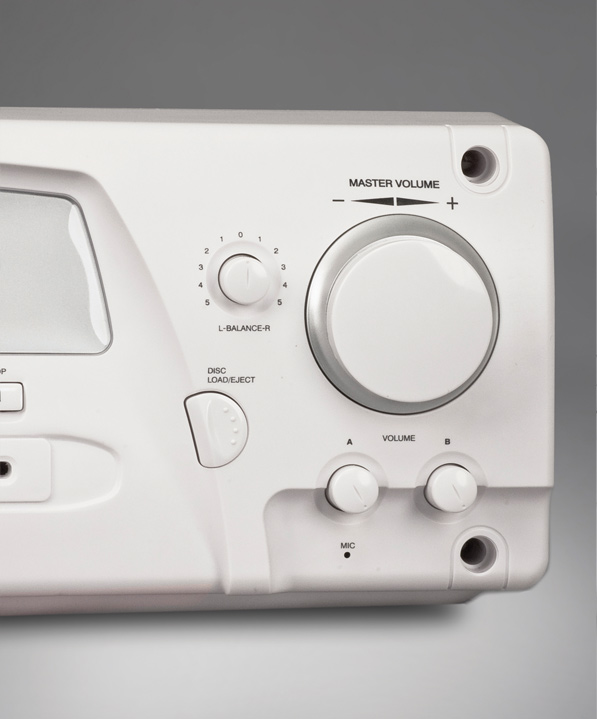

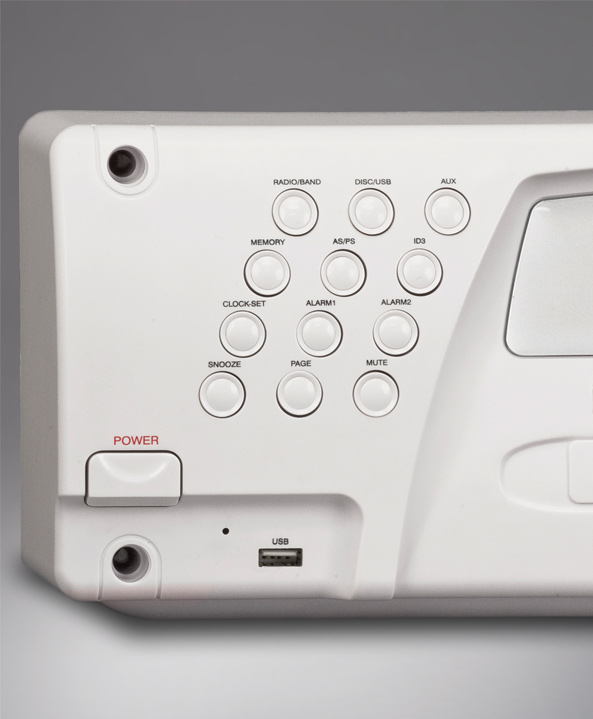

In-Wall Audio - IW-SYS3 - Detail 1 In-Wall Audio - IW-SYS3 - Detail 2 In-Wall Audio - IW-SYS3 - Detail 3

In-Wall Audio - IW-SYS3 - Back Detail


Downloads
Brochure [PDF]
Owner's Manual [PDF]
Press
About.com by Brent Butterworth
CEPro by Robert Archer
CEPro by CE Pro Editors

3 Year Limited Warranty



Questions?
Simply contact us directly,
we have IW-SYS3 customer service
folks standing by to help you
get exactly what you want.

E-mail us anytime at customerservice@oemsystems.com
or call us at
775-355-0405
7 AM - 4 PM Pacific Time.




CEDIA, ETL Listed and RoHS Logos



Helpful Optional Accessories:
The below products are not included with the unit.
In-Wall Audio - MS-D1 Docking Station - Thumbnail In-Wall Audio - MS-B1 Bluetooth Receiver - Thumbnail
MS-D1 Docking Station
MS-B1 Bluetooth Receiver

MODEL:IW-SYS3 (Discontinued)

In-Wall Audio System w/ AM / FM / CD / AUX / USB

Check out our NEW Upgraded In-Wall Audio System!


 DESCRIPTION
AM / FM / CD / AUX /v USB
Enjoy high-quality music throughout your home or office with space saving convenience. This compact In-Wall CD/AM/FM/Aux entertainment center mounts easily in-wall and provides intuitive fingertip control on the unit and via the full-function remote control. The Center plays CD’s via the easy-access loading slot, provides high-quality AM/FM radio (with 30 AM and 30 FM presets) and the AUX input provides simple connection of an MP3 player or other portable audio device. The convenient front-mounted USB port can also play audio files from a USB flash drive. The high-visibility digital display panel also provides digital clock with timer & sleep functions. The IW-SYS3 is a great solution for whole-house audio systems and is capable of driving up to 8 pairs of 8 ohm loudspeakers.

Features Include:
High-Accuracy Digital AM / FM tuner
Easy-Access CD Transport
High-Visibility Remote Control
Convenient Front-mounted USB port
Adjustable LCD Display w/LED backlight


 SPECIFICATIONS
Model Number: IW-SYS3 In-Wall Audio System
Power Transformer: AC 120 V AC 60 Hz
Main Speakers A: 8 ohm speaker, max 4 pair ; 16 ohm speaker, max 8 pair
Output Power Speakers A: 5 W + 5 W (max) @ 4 ohms, 3 W max @ 8 ohms
Auxiliary Speakers B: 8 ohm speaker, max 4 pair ; 16 ohm speaker, max 8 pair
Output Power Speakers B: 5 W + 5 W (max) @ 4 ohms, 3 W max @ 8 ohms
Frequency Range: AM 530 - 1710 KHz ; FM 87.5 - 108 MHz
Frequency Response: 20 Hz - 20 KHz
S/N Ratio (A filter): 90 dB at 1 KHz 0db


 FEATURES
ETL Listed
Remote Control (included)
AM / FM / CD / AUX / USB
Multi-Function Digital Display Window
ID3 MP3 Metadata Display
Digital Clock with Timer & Sleep Functions
Tuner Memory Presets (30 AM & 30 FM)
AM / FM Auto Seek
Independent Bass & Treble Controls
5 Pre-programmed EQ modes
Zone B Paging
Audio Muting
Alarm with Snooze Function
White semi-gloss finish
New or Existing Construction
Unit Mounts in Standard 2" x 4" Stud Walls
Mounts directly to 16 "On-Centers Studs


 CONNECTIVITY
Inputs:
USB port for MP3/WMA files from flash drives
AUX input for additional sound sources
AM/FM antenna inputs

Outputs:
Preamp outputs to drive external power amps or music-on-hold
A+B Speaker Connections with independent controls
Four high-current 5-watt amplifiers drive up to 8 pairs of 8 ohm
speakers without the need for impedance-compensating devices


 DIMENSIONS & WEIGHTS
Required wall cut-out: 14-1/4" W x 5-1/4" H x 3-3/4" D
Overall faceplate dimensions: 17-7/8" W x 6" H
Faceplate Dimension from wall: 4-5/8"

Shipping Dimensions: 24" W x 12" H x 12" D
Shipping Weight: 11 lbs.
Net Weight:  8 lbs.
