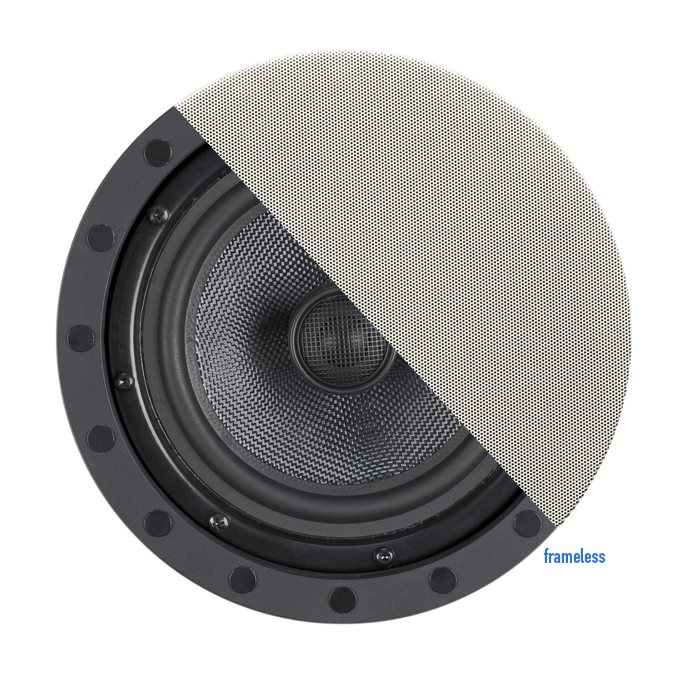

In-Ceiling Speaker - SC-620f


In-Ceiling Speaker - SC-620f - Thumbnail In-Ceiling Speaker - SC-620f - Rear View Frameless Speaker Grille - MGR-6f - Thumbnail
MGR-6f
Frameless Speaker Grille - MGS-6f - Thumbnail
MGS-6f

Downloads


Lifetime Limited Warranty


CEDIA and RoHS Logos

Product Line - Architech

MODEL: SC-620f    *Discontinued*

6-1/2" 2-way In-Ceiling / In-Wall Loudspeaker

Frameless



 DESCRIPTION
Our ArchiTech Series cones are made from genuine DuPont Kevlar® fiber. For our ArchiTech Series, we developed cones that are an exceptional choice for high performance woofers. Their incredible strength enables low-distortion music reproduction, while their lightness provide great detail and musicality. The durability of our ArchiTech Series helps to provide a much longer lifespan along with higher environmental stability.

The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.


 SPECIFICATIONS
Model Number: SC-620f - 6-1/2" 2-way Round In-Ceiling Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting textile soft dome tweeter
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
All Weather Logo Round and Square option

Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Woven woofers are made from genuine DuPont Kevlar® fiber with butyl rubber surrounds
12 dB/octave crossover
Load-balancing toggle mounting system
Frameless Grille may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-7/16" Round
Cut-out Dimensions: 7-1/4" Round x 3-5/16" deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
