In-Wall Speaker - SE-LCRKE

Speaker Grille Rectangle - LCRS - Thumbnail In-Wall Speaker - SE-LCRKE - Side Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech

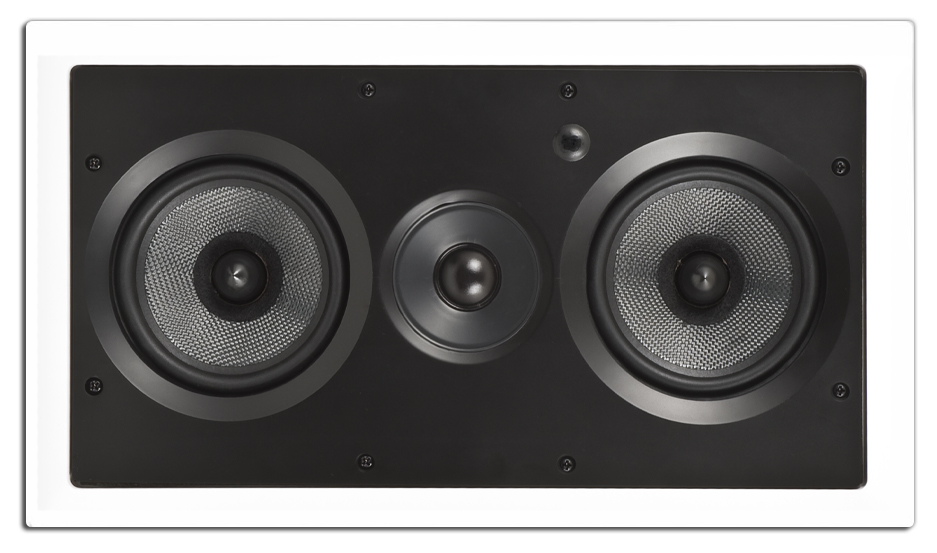

MODEL: SE-LCRKE (DISCONTINUED)

Dual 5-1/4" 2-way In-Wall Loudspeaker

Center / All Channel - LCRS



 DESCRIPTION
Our ArchiTech Series cones are made from genuine DuPont Kevlar® fiber. For our ArchiTech Series, we developed cones that are an exceptional choice for high performance woofers. Their incredible strength enables low-distortion music reproduction, while their lightness provide great detail and musicality. The durability of our ArchiTech Series helps to provide a much longer lifespan along with higher environmental stability.

The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.


 SPECIFICATIONS
Model Number: SE-LCRKE - Dual 5-1/4" 2-way Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" pivoting textile soft dome tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Woven woofers are made from genuine DuPont Kevlar® fiber with butyl rubber surrounds
12 dB/octave crossover
Phase plug pole piece extensions
IR Knockouts
High temperature Polyimide voice coils
Polyswitch overdrive protection
Industry Leading Superior Clamp-ring Mounting System
Magnetically Shielded
Orient Vertically or Horizontally
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eaches


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" W x 15-3/4" H
Cut-out Dimensions: 7-7/8" W x 14-7/16" H x 3-1/2" D
Shipping Weight: 9.9 lbs
Actual Weight:  8.4 lbs
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
