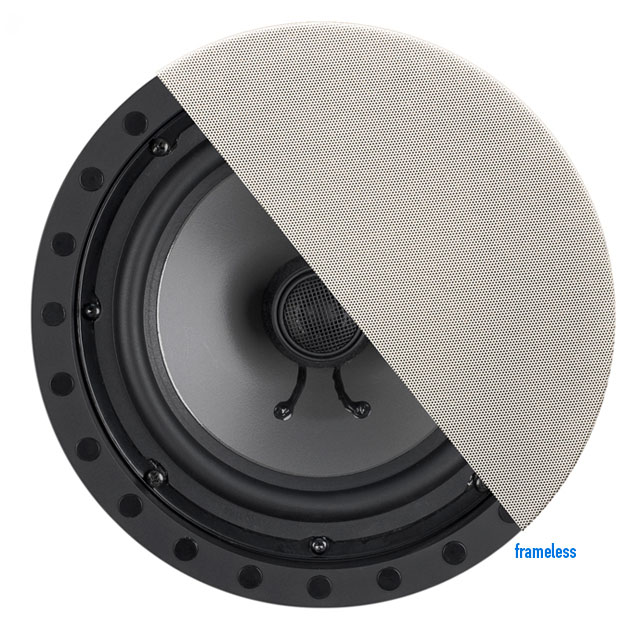

In-Ceiling Speaker - SC-802f


Frameless Speaker Grille - MGR-8f - Thumbnail
MGR-8f
Frameless Speaker Grille - MGS-8f - Thumbnail
MGS-8f
In-Ceiling Speaker - SC-802f - Side Thumbnail

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

MODEL: SC-802f

8" 2-way In-Ceiling / Wall Loudspeaker

Frameless



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The grille may be painted to match mounting surface.

The SC-802f is a 8" round 2-way In-Ceiling / Wall Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SC-802f - 8" 2-way Round In-Ceiling / Wall
Frequency Response: 35Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting dome tweeter
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
All Weather Logo Round and Square option

Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Frameless Grille
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9-7/8" Round
Cut-out Dimensions: 8-5/8" Round x 3-7/8" deep
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 26"x16"x14"
Master Carton Weight: 24 lbs.
Master Carton Quantity: 2 pair
Inner Carton Dimensions: 16"x14"x14"
Inner Carton Weight: 12 lbs.
