In-Wall Speaker - SE-525LCRSf

Speaker Grille Rectangle - MG-LCRSf - Thumbnail In-Wall Speaker - SE-525LCRSf - Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

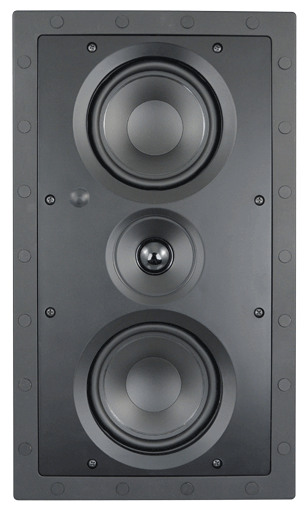

MODEL: SE-525LCRSf

Dual 5-1/4" 2-way In-Wall Loudspeaker

Frameless Center / All Channel - LCRS

(Discontinued)



 DESCRIPTION
Part of the ArchiTech Premium series, the SE-525LCRSf offers excellent price/performance. The SE-525LCRSf is a frameless, in-wall, dual 5.25” affordable LCR home theater solution. Far-forward woofer mounting minimizes diffraction and comes with frameless, vibration-free grille, which may be painted to match mounting surface.


 SPECIFICATIONS
Model Number: SE-525LCRSf - 5-1/4" 2-way In-Wall Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 150 max.
Sensitivity: 87dB 1 watt / 1 meter
Tweeter: 1" pivoting mylar soft dome tweeter
Frameless Grille: Magnetically Attached, Micro-Perforated - MG-LCRSf
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Poly woofers with butyl rubber surrounds
Far-forward woofer mount with pole-mounted tweeter
Industry leading superior clamp-ring mounting system
Magnetic, frameless, micro-perforated, vibration-free grille
High temperature Polyimide voice coils
Orient vertically or horizontally
Sold and shipped individually
IR Knockouts


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" W x 15-3/4" H
Cut-out Dimensions: 7-15/16" W x 14-7/16" H x 3-1/4" Deep
Shipping Weight: N/A
Net Weight:  N/A
