Product Line - Architech - Premium Series

MODEL: SE-W602LCRSf

6-1/2" 2-way In-Wall Loudspeaker with Rotating Waveguide

Frameless



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The grille may be painted to match mounting surface.

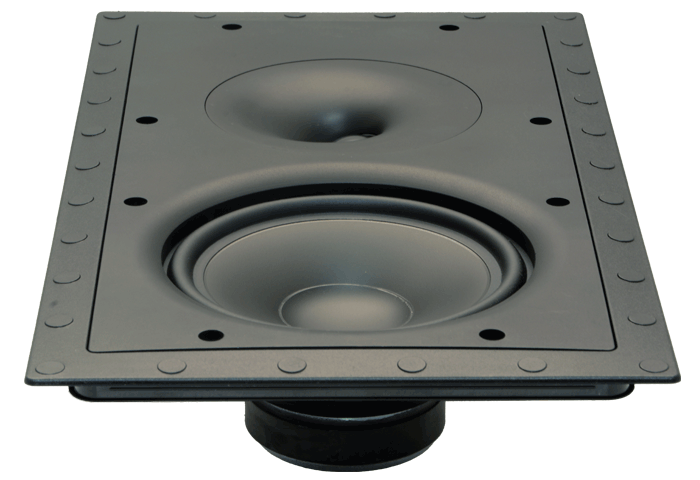

The innovative cross-axis rotating waveguide on the SE-W602LCRSf allows the tweeter to operate a full octave lower than conventional dome tweeters while simultaneously reaching more than a half octave higher in frequency. Therefore, the tweeter is able to cover more of the critical voice range, create a much smoother off-axis listening experience, and eliminate the midrange-hole that is commonly experienced with conventional designs.

The SE-W602LCRSf is a 6-1/2" round 2-way In-Wall Loudspeaker with Rotating Waveguide, sold individually.


 SPECIFICATIONS
Model Number: SE-W602LCRSf
Frequency Response: 65Hz - 20kHz ± 3 dB
Power Handling: 45 watts nom. 90 max.
Sensitivity: 86dB 2.83 V / 1 meter
Tweeter: 1" pivoting silk dome tweeter

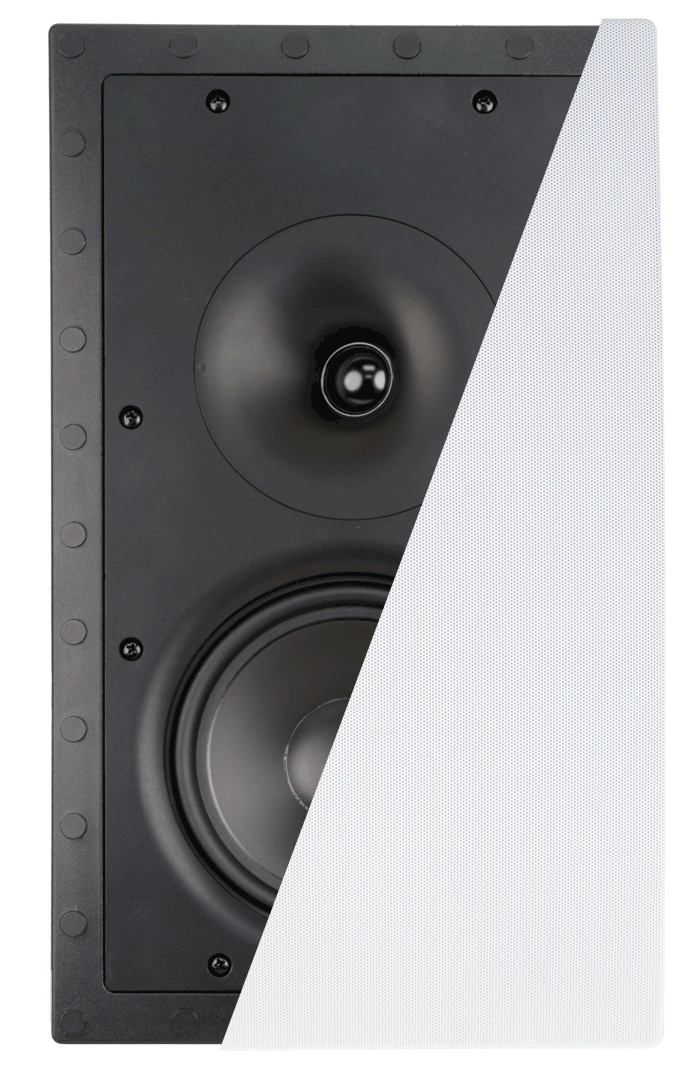

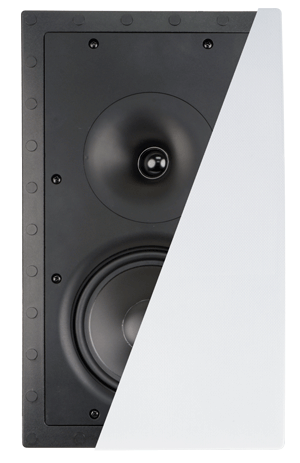

Frameless Grille: Magnetically Attached, Micro-Perforated - MG-LCRSf
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Polypropylene woofer with butyl rubber surrounds
Innovative tweeter-mounted rotating waveguide with superlative off-axis performance
Industry leading superior clamp-ring mounting system
Magnetic, frameless, micro-perforated, vibration-free grille
High temperature Polyimide voice coils
Orient vertically or horizontally
Sold and shipped individually


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" W x 15-3/4" H

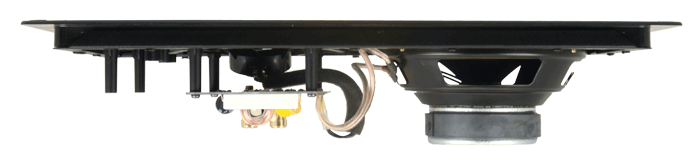

Cut-out Dimensions: 7-7/8" x 14-7/16" x 3-5/8" Deep
Shipping Weight: N/A
Net Weight:  N/A
