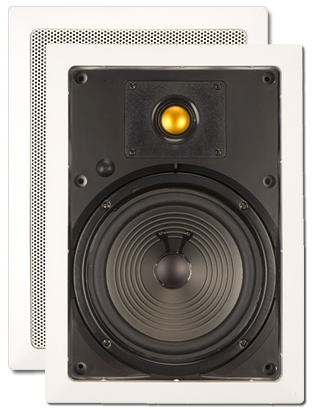

MODEL: AW-700

6-1/2" 2-way In-Wall Outdoor Loudspeaker



 DESCRIPTION
The AW-700 is a 6 1/2" 2-way Loudspeaker. It is
specifically designed for outdoor use. Built to weather the elements with a 1" Weatherized Titanium Dome Tweeter, rustproof painted aluminum grille and stainless steel hardware.


 SPECIFICATIONS
Model Number: AW-700 - 6-1/2" 2-way In-Wall Outdoor Loudspeaker
Frequency Response: 45Hz - 21kHz ± 3 dB
Power Handling: 30 watts nom. 60 max.
Sensitivity: 89dB 1 watt / 1 meter
Tweeter: 1" Weatherized Titanium Dome Tweeter
Grille: Epoxy Painted Aluminum Perforated Grille Rustproof

Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Carbon Fiber impregnated poly-cone woofer w/ Butyl Rubber Surround
Silicon Encapsulated High Grade Crossovers
IR Knockouts
Gold Plated Spring Clip Terminals
Stainless Steel Hardware
Anti corrosive materials throughout
Rubber Gaskets and Hardware Seals
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-3/8" W x 12-1/8" H x 3-1/4" D
Cut-out Dimensions: 7-3/8" W x 10-7/8" H x 3-1/4" D
Shipping Weight: 12lbs pair
Net Weight:  5.25 lbs each
