LEGACY MODEL: The SC-620KE has been DISCONTINUED and replaced by the SC-620f.



Downloads
Installation Guide [PDF]


WARRANTY
Lifetime Limited Warranty








Kevlar is an amazing fibrous material developed by two DuPont research scientists in 1965. The technology developed by Stephanie Kwolek and Herbert Blades proved to be stronger, more durable and lighter than any other material available. Kevlar is 5 times stronger than steel of the same weight.

These unique properties lend Kevlar to a wide variety of applications. As you may know, one of the first and well known applications is for bullet-resistant vests used by law enforcement as well as the military because of the superior bullet stopping power it provides without adding weight and restricting movement.

Products made with DuPont's Kevlar-from loudspeaker cones and protective apparel to automotive parts and ropes used on the Mars Pathfinder-do more, go farther, last longer, and do the impossible.

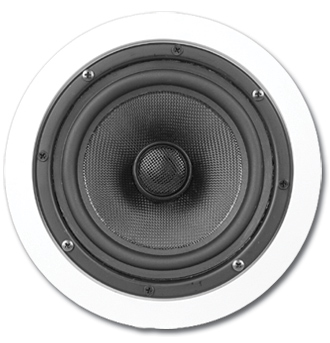

Model Number: SC-620 KE - 6-1/2" 2-way Round In-Ceiling Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting textile soft dome tweeter
Grille: Perforated Metal Grille: MGR-6
Impedance: 8 ohms nominal
Pre-construction Bracket: Pre-construction bracket: RIR-6
Vapor Dome / Pre-Con Bracket: VPD-6
Bridge for T-Bar Ceiling: PB-6
Plenum Dome: PE-8



Woven Kevlar® woofers with butyl rubber surrounds
12 dB/octave crossover
Proven Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs



Overall Dimensions: 8-3/8" Round
Cut-out Dimensions: 7-3/8" Round x 2-7/8 deep
Shipping Weight: N/A
Net Weight:  N/A
