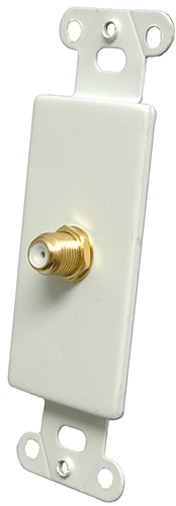

| Pro-Wire Jack Plates - IW-1FG |
 |
 |
|
||||||||||||||||||||
| 1 "F" Jack (Co-Ax Type) Threaded Fronts
and Backs. All steel "Decorator Style" plate
with GOLD PLATED jacks. For ONE RF cable or TV antenna type signal wire.  |
SPECIFICATIONS
| Model Number: | IW-1FG - "F" Type Jack Plates |
| Pre-Made / In-Stock Available Colors: | |
 White only |
|
INSTALLATION NOTES
 Plate will mount in standard "J" box with included screws. Wiring should be RG-59U, |
 RG-6 or
similar type SHIELDED co-ax wire. Use crimp-on type plug for both front and back |
| side connections.
Refer to a qualified technician if in doubt as to specific wiring diagrams |
| for various installations.
WARNING: Improper installation may damage electronic component. |
|
