Pro-Wire Jack Plate - IWM-8BPG


Pro-Wire Jack Plate - IW-8BPG - Back Thumbnail Pro-Wire Jack Plate - IW-8BPG - Back Detail Thumbnail

Downloads

Lifetime Limited Warranty


CEDIA and RoHS Logos

Product Line - Pro-Wire

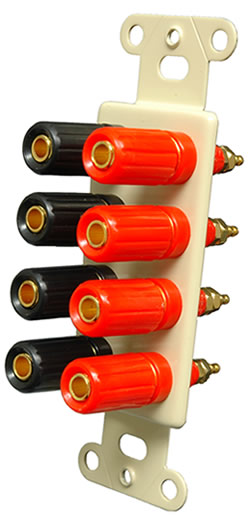

MODEL: IWM-8BPG

5 Way Binding Post Jack Plates

Decorator Style Plate with GOLD PLATED Jacks



 DESCRIPTION
4 pair Binding Posts. All steel "Decorator style plate with GOLD PLATED jacks.

4 right (RED) and 4 left (BLACK) binding post (1 pair). Will accept bare wire up to 14 gauge for speaker level signals, or Banana plugs, or
spade lug.

5-way BINDING POSTS gold plated - Deluxe for bare wire (to 12 gauge), spade lugs or banana plug, Quick Connect Backs

Solder Back Logo



 SPECIFICATIONS
Model Number: IW-8BPG - 5 way Binding Post Jack Plate

Pre-Made / In-Stock Available Colors:
Pro-Wire Jack Plate  - Available Colors White, Ivory (i) & Almond (a)


 INSTALLATION NOTES
minimum 18 gauge CL rated. Use 16 or 14 gauge for longer runs. Wiring may be
soldered or attached via spade lugs. Refer to qualified technician if in doubt as to
specific wiring diagrams for various installations. WARNING: Improper wiring may
damage electronic components!


 RELATED ITEMS


 DIMENSIONS
Pro-Wire Blank Plate Dimensions - Thumbnail
