Center / All Channel LCRS Speaker, 2 way,  5-1/4 inch - A-525CC


Center / All Channel LCRS Speaker, 2 way,  5-1/4 inch - A-525CC - Thumbnail Center / All Channel LCRS Speaker, 2 way,  5-1/4 inch - A-525CC - Plugs Thumbnail

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

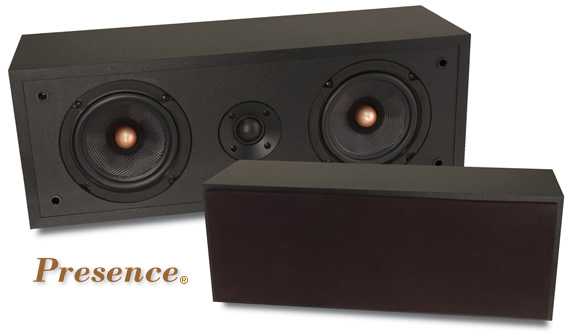

MODEL: A-525CC

Dual 5-1/4" 2-way MTM Loudspeaker

Center / All Channel - LCRS



 DESCRIPTION
The A-525CC has been optimized for high fidelity home theater applications, primarily as a center
speaker. It will function equally well when used for left and right front/surround. The broad dispersion
design does not limit the sweet spot to just one seat in the center of the room but provides a large
sound field from which to enjoy music and video soundtracks. The A-525CC also performs well in
high fidelity audio applications for the primary stereo channels.

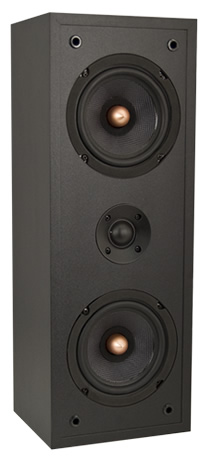

A-525CC May be oriented vertically or horizontally.
Equally suitable for Left/Right primary and surround channels

Magnetically Shielded
5.1, 6.1, & 7.1 Home Theater Systems
Specially designed for use in left,
center, right & surround loudspeaker
positions of home theater systems.

Placement and Setup
For most center channel applications the speaker will lay horizontally either beneath or above the video display. Some screens may be acoustically transparent and allow the speaker to be placed behind the screen. The center speaker can be oriented vertically if desired. Due to space constraints this is not usually done for the center channel but is usually done for the main and surround channels.

Significant bass emphasis can occur when a speaker is placed in a corner or in a cabinet. In some cases this is desirable. However, if too much bass emphasis occurs then it may be necessary to reduce the low frequency information to the speaker. This is best done using the tone controls if a subwoofer is not present in the system. However if a subwoofer is present then this is best done by selecting a filtered high-pass output to the primary speakers. This is an available feature in most modern home theater receivers.

Though the A-525CC can be used without a subwoofer it is ideally suited for use with a subwoofer. When setting up the A-525CC speakers with a subwoofer in a home theater application we recommend the following receiver settings:
   - Subwoofer (Low Pass) cutoff: 70-110Hz
   - Main, Center, and Surround Speakers: 80-120Hz (small or mid size speakers)

A higher crossover frequency will allow the A-525CC speakers to play louder without overdriving its 5.25" woofers but the upper bass response of the system may diminish depending on the rate of roll-off. These upper bass frequencies can be reproduced by the subwoofer but the bass may sound detached if the subwoofer is not placed in close proximity to the main speakers. Every system and environment is unique; experiment to determine what works best in yours.


 SPECIFICATIONS
Model Number: A-525CC 2-way MTM Center Channel Loudspeaker
Frequency Response: 80Hz - 20kHz ± 3 dB
Power Handling: 60 watts RMS, 120 watts Max
Sensitivity: 89dB 2.83V / 1 meter
Tweeter: 1" Silk dome ferro-fluid cooled tweeter with acoustically
optimized aluminum waveguide
Grille: Black Cloth Grille
Impedance: 8 ohms nominal, 6 ohms minimum


 FEATURES
Dual 5-1/4'' Magnetically shielded woven Kevlar® Woofers with butyl rubber surrounds
Non-reflective-black MDF cabinet
Equally suitable for Left/Right primary and surround channels
Gold spring-post connections that accept up to #10 wire & dual banana plugs
Proven Mounting System
Sold and Shipped in Eaches


 DIMENSIONS & WEIGHTS
Overall Dimensions: 18-5/16''W x 6-11/16''H x 6-5/8''D (Including Grille)
  465mm W x 159mm H x 168mm D (Including Grille)

Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
