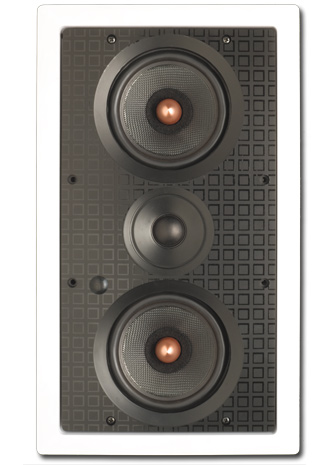

In-Wall Center / All Channel LCRS Speaker, 2 way, 5-1/4 inch - A-LCRS

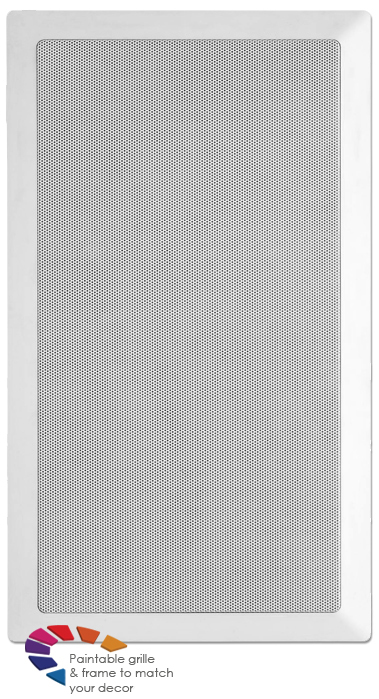

Rectangle LCRS Speaker Grille - Thumbnail In-Wall Center / All Channel LCRS Speaker, 2 way, 5-1/4 inch - A-LCRS - Thumbnail

Downloads
Brochure [PDF]
Installation Guide [PDF]

Lifetime Limited Warranty

CEDIA and RoHS Logos


MODEL: A-LCRS

Dual 5-1/4" 2-way In-Wall Loudspeaker

Center / All Channel - LCRS



 DESCRIPTION
Presence represents a new level of performance and value in In-Wall and Ceiling loudspeakers.
Our signature Lifetime Limited Warranty ushers in these straight forward no-nonsense loudspeaker systems. Practical engineering and the best materials available are present throughout this comprehensive and well thought-out product line. The Presence line is known namely by its cones made from genuine DuPont™ Kevlar® fiber with butyl rubber surrounds & ferro-fluid cooled silk dome tweeters. Midrange drivers, thick fiberglass crossover network PC boards populated with high-grade electronic components, over-drive tweeter protection, heavy gauge oxygen-free copper wiring and stout gold plated high tension connection terminals are other features of the Presence line.

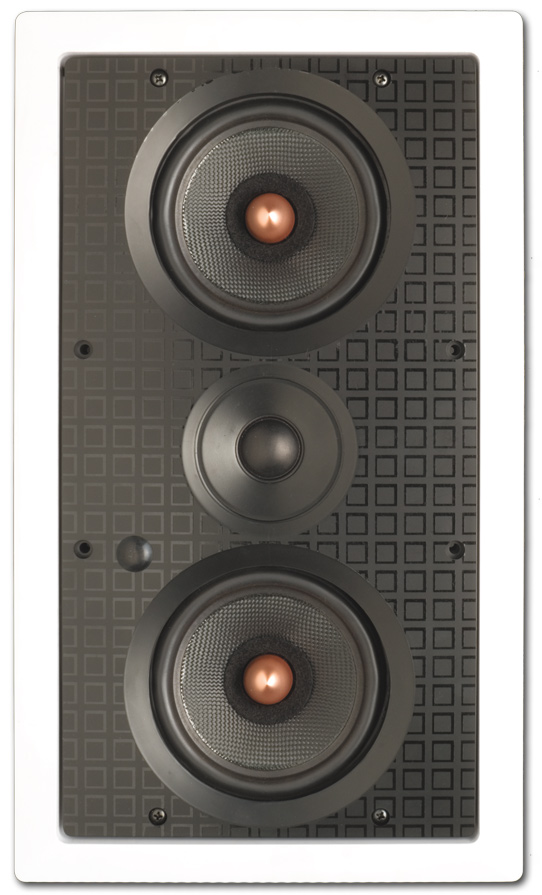

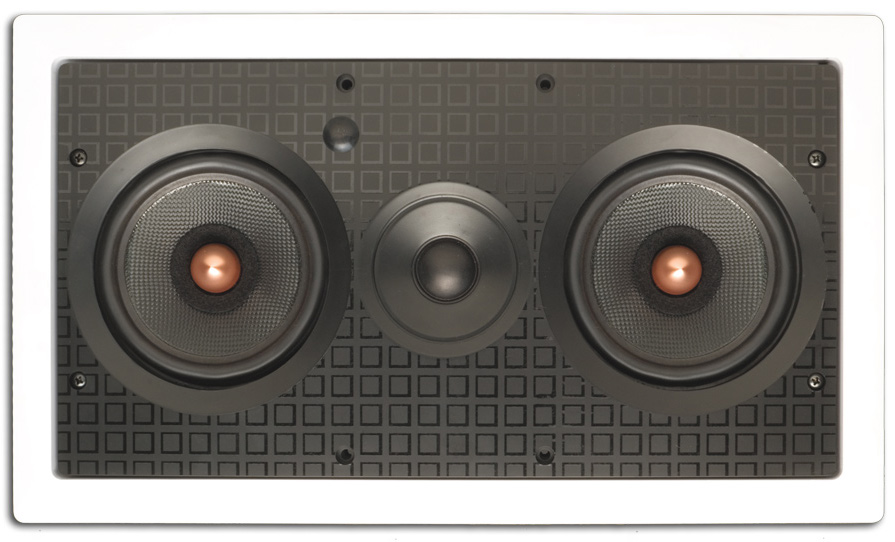

A-LCRS May be oriented vertically or horizontally.

Magnetically Shielded
5.1, 6.1, & 7.1 Home Theater Systems
Specially designed for use in left,
center, right & surround loudspeaker
positions of home theater systems.


 SPECIFICATIONS
Model Number: A-LCRS - Dual 5-1/4" 2-way Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" Silk soft dome pivoting tweeter
Grille: Perforated Metal Grille: MG-LCR
Impedance: 8 ohms nominal
Pre-construction Bracket: Pre-construction bracket: RIB-LCR


 FEATURES
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
Phase plug pole piece extensions
IR Knockouts
High-grade crossovers
Polyswitch overdrive protection
Industry Leading Superior Clamp-ring Mounting System
Magnetically Shielded
Orient Vertically or Horizontally
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eachs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9" x 15-3/4"
Cut-out Dimensions: 7-7/8" x 14-7/16" x 3-1/2" deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
