Double Swivel Speaker Mounting Bracket - SE-DBLSVL mk II


Double Swivel Speaker Mounting Bracket - SE-DBLSVL mk II - Detail Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

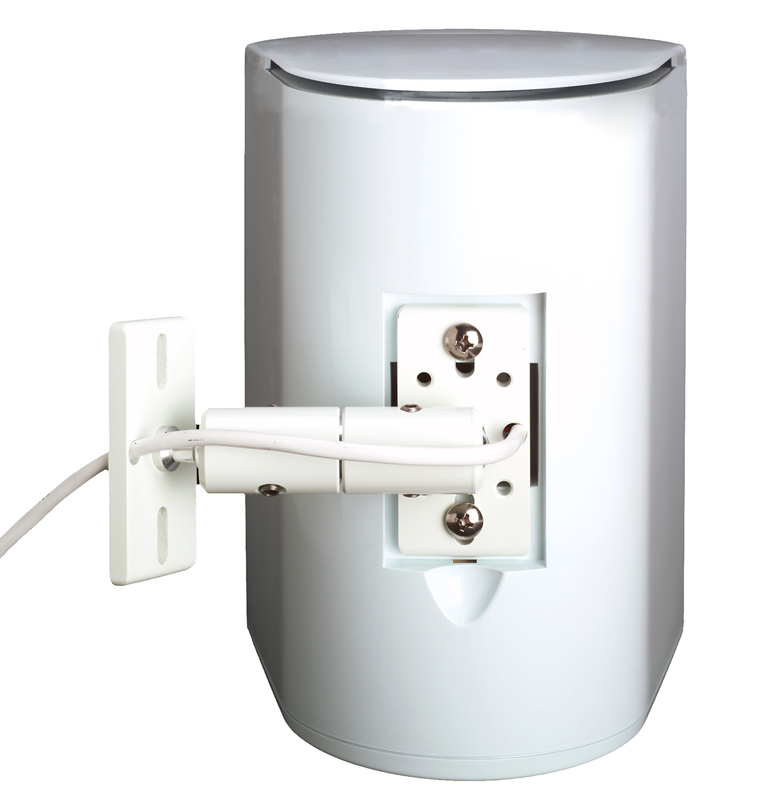

MODEL: SE-DBLSVL mk II

Double Swivel Mounting Bracket



 DESCRIPTION


 SPECIFICATIONS
Model Number: SE-DBLSVL
Available Colors: Available in White Only


 FEATURES
Double Swivels (For maximum positioning flexibility)
Heavy Duty, Rust Resistant Design
10 Pound Weight Limit (8 ft/lbs torque)
Includes Safety Cable & Stainless Mounting Hardware

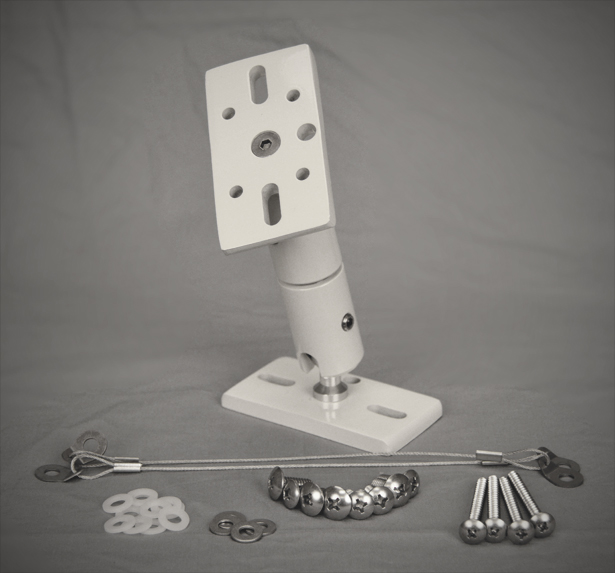

Parts List:
(2) Bracket Assemblies - Fully assembled with 5/16" long, 5/16" dia., 24 TPI set screw
(2) Safety Cables - Stainless steel cable with crimped loops and attachment ring at each end
(4) Mounting Screws Wall - 2" long stainless steel screw for wood
(4) Mounting Screws Speaker - /4" long, 1/4" diameter, 20 TPI, stainless steel machine screw
(12) Nylon Washers - 1.5mm thick nylon washer
(8) Stainless Washers
(1) 5/32" Hex Wrench - Wrench (fits all bracket screws)
(1) Instruction Manual



 DIMENSIONS & WEIGHTS
Shipping Weight: N/A
Net Weight:  N/A
