MODEL: SE-80SWD (DISCONTINUED)

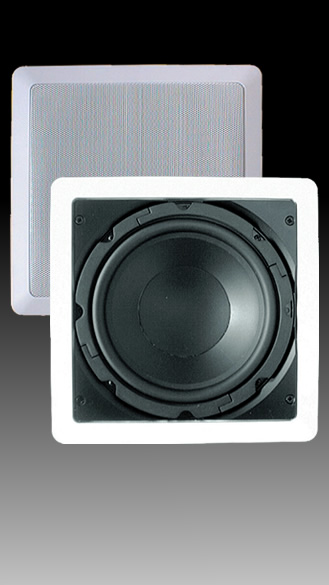

8" Dual Voice Coil In-Wall Subwoofer

DESCRIPTION

SE-80SWD 8" Dual Voice Coil
Polypropylene Subwoofer with onboard crossovers & high-pass output for satellite speakers. Elegant frame and grille may be painted to match your decor. For Superior performance and sound we suggest connecting two or four SE-80SWD subwoofers to one of our 500 Watt Class A/B Model 500 Amplifiers. Dual subwoofer outputs allow multiple woofers to be easily connected to the same amplifier. Multiple woofers placed around the room can provide more uniform bass reproduction throughout the listening area.

SPECIFICATIONS

Model Number:	SE-80SWD - 8" Dual Voice Coil In-Wall Subwoofer
Frequency Response:	30Hz - 120Hz
Power Handling:	50 watts nom. 100 max.
Sensitivity:	N/A
Grille:	Perforated Metal Grille
Impedance:	8 ohms nominal

FEATURES

Paintable grille and frame to match your decor

Sold and Shipped in Eachs

DIMENSIONS & WEIGHTS

Overall Dimensions:	10" x 10"
Cut-out Dimensions:	8-3/4" x 8-3/4" x 3-7/8" deep
Shipping Weight:	N/A
Net Weight:	N/A
