MODEL: SE-10SW & SE-10SWD
10" In-Wall Subwoofers

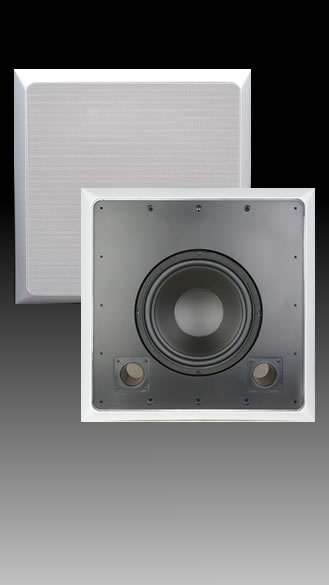

The STUD Woofer 10" In-Wall Subwoofer fits in standard 2" x 4" walls. It fastens directly to 16" on-center wall studs so it will not work itself loose from the drywall.
It does not require any special cabinet or bracing, it is entirely retrofit-able. It was designed to be installed in standard 2" x 4" or 2" x 6" walls with 1/2" drywall without any need for reinforcement, blocking, etc.
The SE-10SW is a single channel model, one may be driven directly by an amplified Mono low pass signal or two separate units may be driven by amplified Stereo low pass signals. One or two SE-10SW may be fitted with modular 10-MX passive Mono crossovers for high level single channel in with single channel low & high pass out for use with a satellite speaker(s).
The SE-10SWD is a dual channel, dual voice coil model. This model may be driven directly by amplified Stereo low pass signals or be fitted with two modular 10-MX crossovers for Stereo Sub / Satellite systems.
The MODEL 10-MX (Modular Crossover) is a 100Hz Passive Crossover with speaker level inputs and both high and low pass outputs for directly driving a subwoofer and a satellite speaker. It attaches to the back of the SE-10SW with provided screws. (not included with subwoofer)
The STUD Woofer is for people who want an In-Wall Subwoofer that is a near equal to the sound quality of the best cabinet type Subwoofers, but do not want the inconvenience or unsightly situation of fitting a speaker cabinet into their living space.
The STUD Woofer is perfect for the latest Dolby Digital Home Theater System technology. Match one or two of this audiophile inspired design with any brand In-Wall speakers to greatly enhance the bass response in a smooth extended manner while maintaining an uncluttered living space. |
| Model Number: |
SE-10SW /SWD 10" Butyl Surround Polypropylene Driver |
| Frequency Response: |
25Hz - 200Hz |
| Power Handling: |
150 watts max. |
| Sensitivity: |
87dB 1 watt / 1 meter |
| Grille: |
Perforated Metal Grille |
| Impedance: |
8 ohms nominal |
| |
|

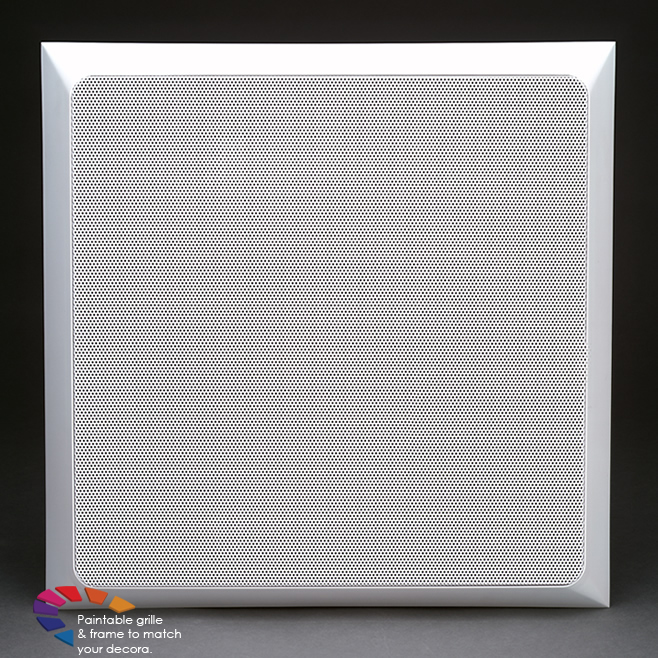

  Paintable grille and frame to match your decor |

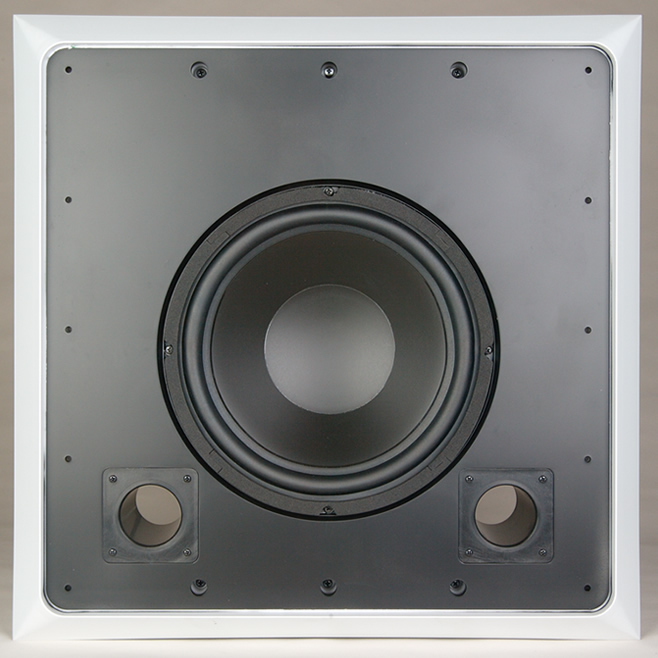

| Tuned twin port design |
| Tuned for optimum performance in a wide variety of wall configurations, including standard |
 2" x 4" & 2" x 6", 7' 10" high residential walls |
| Supplied with port plugs which enable the STUD Woofer to be used in |
| infinite baffle arrangements |
| Sold and Shipped in Eachs |
| |
| Overall Dimensions: |
19-1/2" x 19-1/2", 1-3/4" Face Relief
|
| Cut-out Dimensions: |
14-1/2" W x 16-1/2" H |
| Mounting Depth: |
3-3/8" |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
