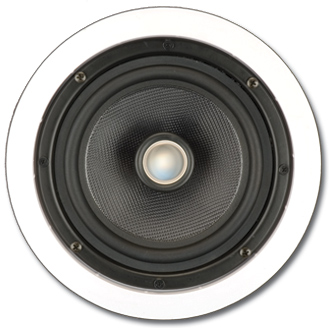

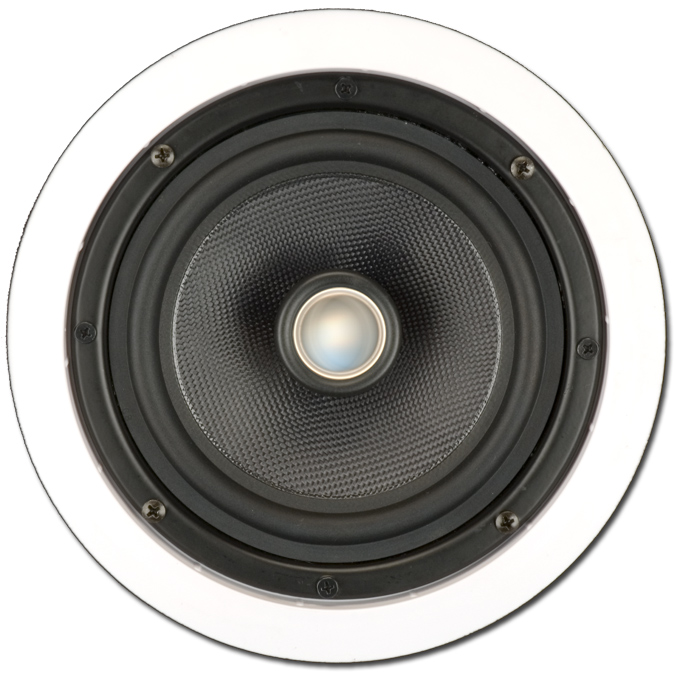

| Rich in features the Prestige Series boasts Kevlar® woofers with butyl rubber surrounds and high temperature Polyimide voice coils. Pivoting lens-free aluminized ferro-fluid cooled dome tweeters. The PS-601 is a 6 1/2" round 2-way In-Ceiling Loudspeaker, sold in pairs. |
| Model Number: |
PS-601 - 6-1/2" 2-way Round In-Ceiling Loudspeaker |
| Frequency Response: |
40Hz - 22kHz ± 3 dB |
| Power Handling: |
50 watts nom. 140 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
1" lens-free aluminized ferro-fluid cooled pivoting dome  tweeter
poly switch protected |
| Grille: |
Perforated Metal Grille: MGR-6 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIR-6 |
| Vapor Dome / Pre-Con Bracket: |
VPD-6 |
| Bridge for T-Bar Ceiling: |
PB-6 |
| Plenum Dome: |
PE-8 |
| |
|
 Woven Kevlar® woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| High temperature Polyimide voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Pairs |
| |
| Overall Dimensions: |
8-3/8" Round
|
| Cut-out Dimensions: |
7-3/8" Round x 2-7/8 deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
