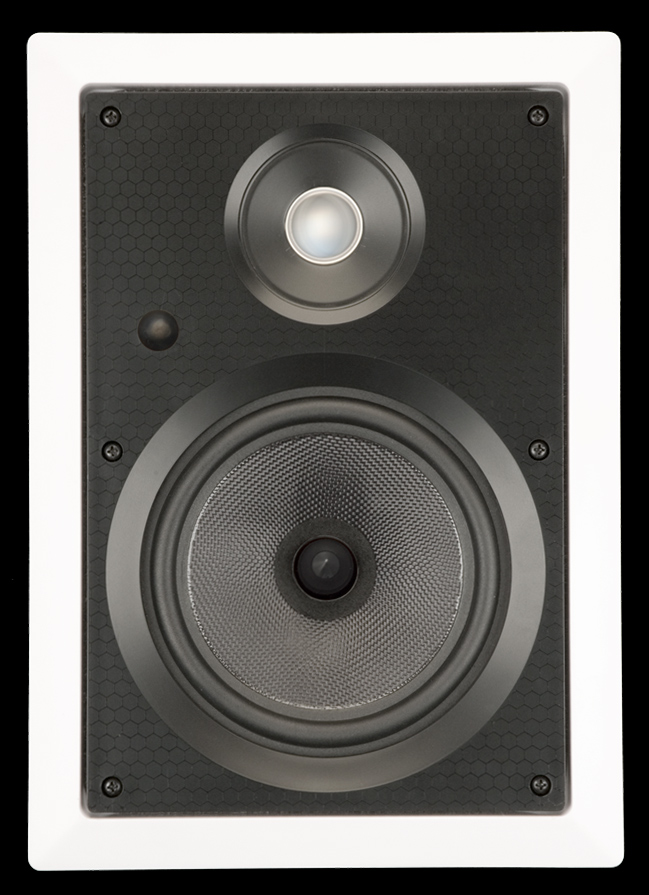

| Rich in features the Prestige Series boasts Kevlar® woofers with butyl rubber surrounds and high temperature Polyimide voice coils. Pivoting lens-free aluminized ferro-fluid cooled dome tweeters. The PS-602 is a 6 1/2" rectangular 2-way In-Wall Loudspeaker, sold in pairs. |
| Model Number: |
PS-602 - 6-1/2" 2-way Rect. In-Wall Loudspeaker |
| Frequency Response: |
40Hz - 22kHz ± 3 dB |
| Power Handling: |
50 watts nom. 140 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
1" lens-free aluminized ferro-fluid cooled pivoting dome  tweeter
poly switch protected |
| Grille: |
Perforated Metal Grille: MG-62 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIB-62 |
| |
|
 Woven Kevlar® woofers with butyl rubber surrounds |
| High temperature Polyimide voice coils |
| Phase plug pole piece extensions |
| IR Knockouts |
| Industry Leading Superior Clamp-ring Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Pairs |
| |
| Overall Dimensions: |
9 1/16" W x 12 3/4" H
|
| Cut-out Dimensions: |
8-5/8" Round x 3-3/8 deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
