Rich in features the Prestige Series boasts Kevlar® woofers with butyl rubber surrounds and high temperature Polyimide voice coils.  Pivoting lens-free aluminized ferro-fluid cooled dome tweeters. The PS-611 is a 6 1/2" round 2-way Single Point Stereo In-Ceiling Loudspeaker, sold in eaches.

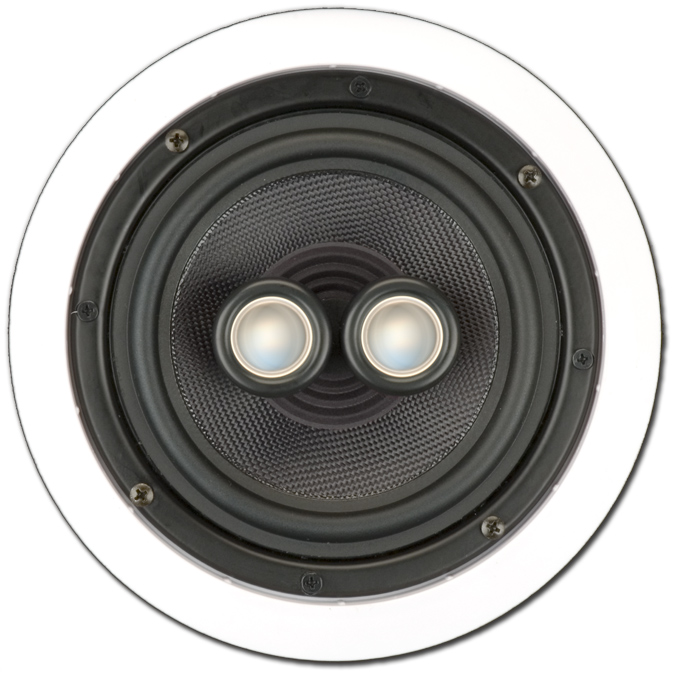

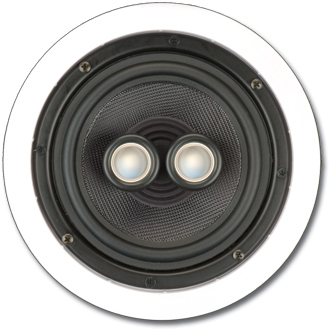

Model Number: PS-611 - 6-1/2" 2-way Single Point Stereo
Frequency Response: 40Hz - 22kHz ± 3 dB
Power Handling: 50 watts nom. 140 max. both channels combined
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: Two 3/4" lens-free aluminized ferro-fluid cooled
pivoting dome tweeter poly switch protected
Grille: Perforated Metal Grille: MGR-622
Impedance: 8 ohms nominal
Pre-construction Bracket: Pre-construction bracket: RIR-6
Vapor Dome / Pre-Con Bracket: VPD-6
Bridge for T-Bar Ceiling: PB-6
Plenum Dome: PE-8



Woven Kevlar® woofers with butyl rubber surrounds
Far-forward woofer mount with pole-mounted tweeter
minimizes diffraction while maximizing dispersion
High temperature Polyimide voice coils
Proven Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eaches



Overall Dimensions: 8-3/8" Round
Cut-out Dimensions: 7-3/8" Round x 2-7/8 deep
Shipping Weight: N/A
Net Weight:  N/A
