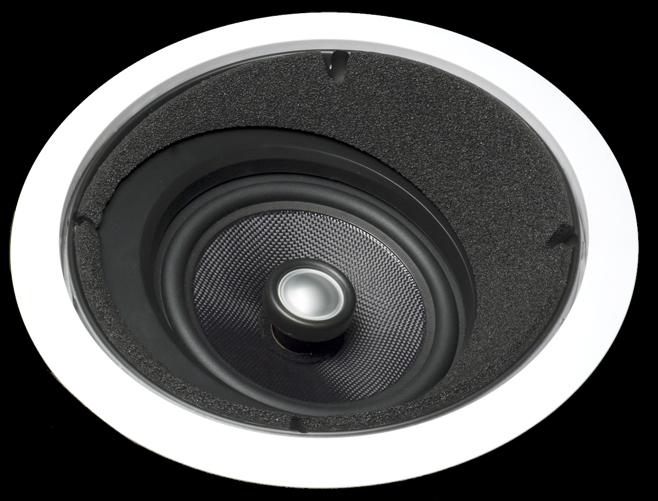

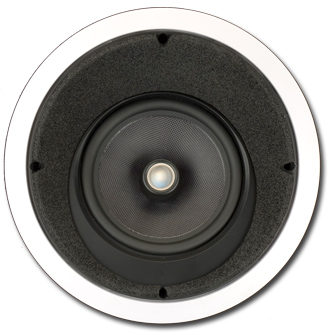

| 15 degree angle enables significantly enhanced cinematic sound imaging when room layouts dictate ceiling mounted loudspeakers. The PS-815 LCRSis a 8" 2-way round In-Ceiling Loudspeaker, sold in eaches. |
| Model Number: |
PS-815 LCRS - 8" 15 Degree Angled Loudspeaker |
| Frequency Response: |
35Hz - 22kHz ± 3 dB |
| Power Handling: |
60 watts nom. 160 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
1" lens-free aluminized ferro-fluid cooled pivoting dome
 tweeter
poly switch protected |
| Grille: |
Perforated Metal Grille: MGR-815 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIR-815 |
| |
|
 Woven Kevlar® woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| High temperature Polyimide voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Eaches |
| |
| Overall Dimensions: |
12-7/8" Round
|
| Cut-out Dimensions: |
11-1/2" Round x 5-1/4" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
