In-Wall Speaker - SE-791E

Speaker Grille Rectangle - Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

MODEL: SE-691E

5-1/4" 2-way In-Wall Loudspeaker



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

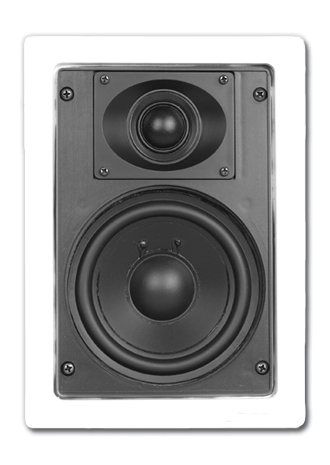

The SE-691E is a 5-1/4" Rectangular 2-way
In-Wall Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SE-691E - 5-1/4" 2-way Rect. In-Wall Loudspeaker
Frequency Response: 50Hz - 20kHz ± 3 dB
Power Handling: 30 watts nom. 60 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" pivoting textile dome tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Poly woofers with butyl rubber surrounds
Industry Leading Superior Clamp-ring Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 6-5/8" W x 9-1/4" H
Cut-out Dimensions: 5-9/16" W x 8-1/4" H x 2-3/8" D
Shipping Weight: N/A
Net Weight:  N/A
