Box Buddy Mounting Ring - BB-22

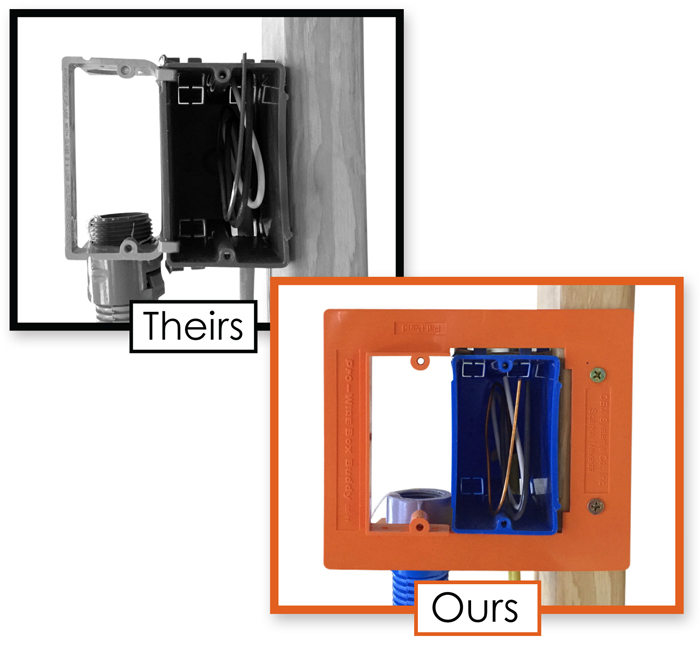

Box Buddy Competitor Comparison Box Buddy Alignment Diagram

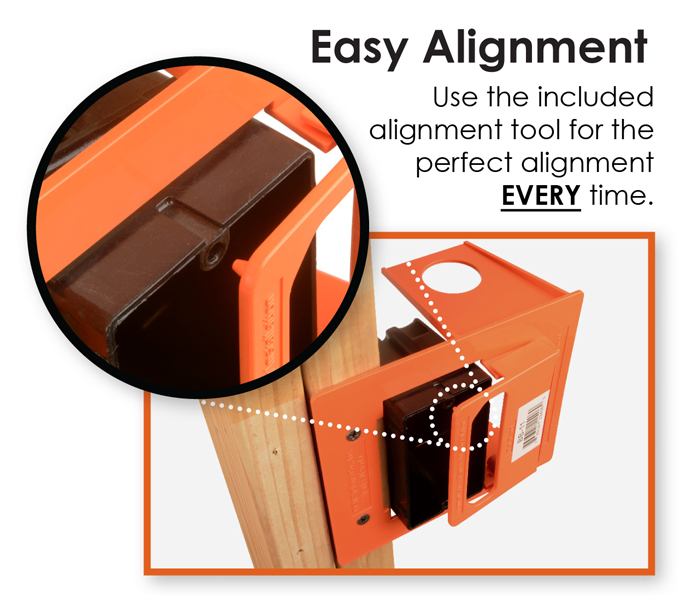

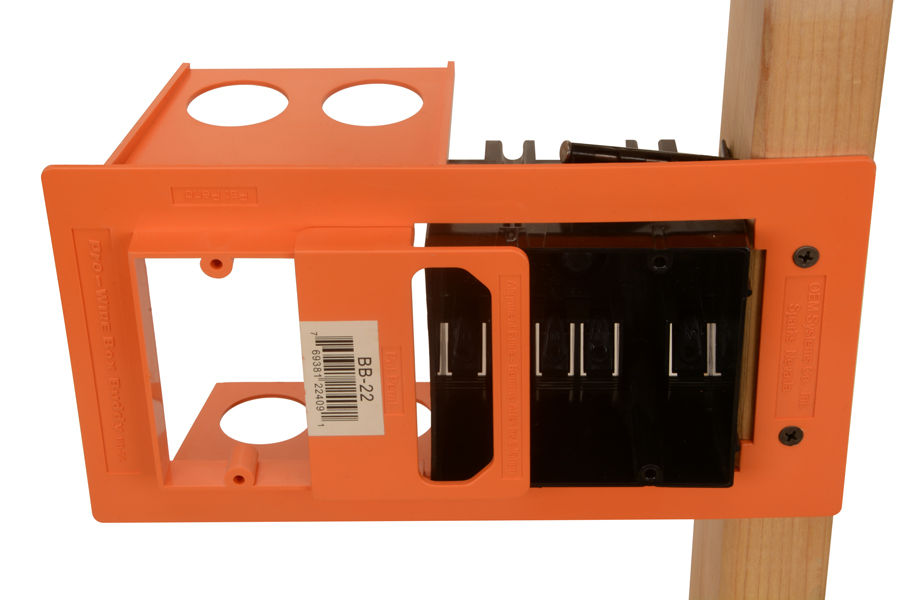

BB-22 with Alignment Tool BB-22 with
Alignment Tool

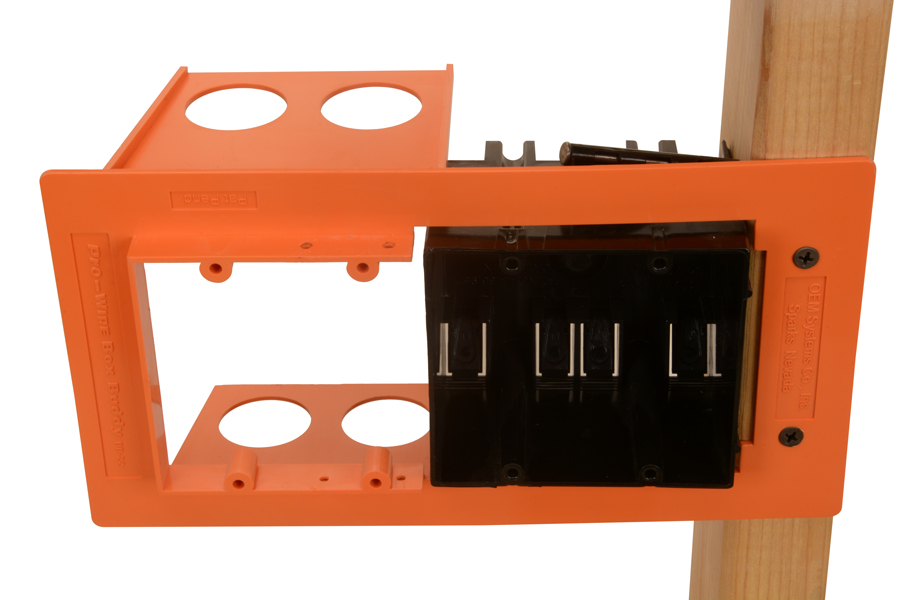

BB-22 with Alignment Tool BB-22 without
Alignment Tool


Downloads


WARRANTY
Lifetime Limited Warranty


CEDIA and RoHS Logos


Product Line - Box Buddy

MODEL: BB-22

Low Voltage Mounting Ring



 DESCRIPTION
Box Buddy® low voltage mounting rings are designed for positioning low voltage devices next to 110 VAC electrical boxes with standard NEC spacing so that the combined 110 and low voltage device(s) may be covered with one multi-gang coverplate for an elegant appearance. The Box Buddy® uses a patent pending pull-off alignment tool that makes combined installation and alignment of 110 VAC and low voltage devices simple and quick. Box Buddy® low voltage mounting rings feature conduit flanges off-set by 5/8" which enable unobtrusive use of conduit connectors.


 FEATURES
Add 2 Low Voltage devices to a 2 Gang 110 VAC Box
Made from ABS flame retardant plastic, UL 94V-0 compliant
Sold and shipped individually


 DIMENSIONS & WEIGHTS
Dimensions: 10-1/8" W x 5-1/2" H x 3-7/8" D, (257W x 140H x 98D)mm
Cut Out: 7-3/4" W x 3-11/16" H
Shipping Weight: N/A
Net Weight:  N/A

Lifetime Limited Warranty
