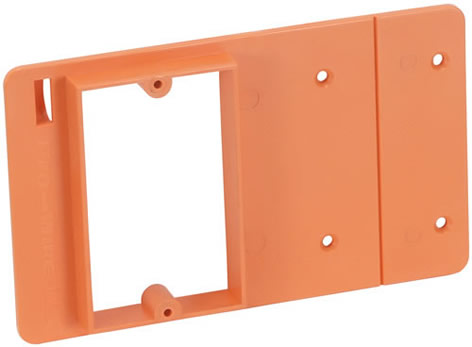

Box Buddy Mounting Ring - MR-1


Box Buddy Mounting Ring - MR-1 Diagram

Downloads


WARRANTY
Lifetime Limited Warranty

Lifetime Limited Warranty

CEDIA and RoHS Logos


Product Line - Box Buddy

MODEL: MR-1
*Temporarily Out of Stock*

Combination Speaker Locator

& Single Gang Mounting Ring



 DESCRIPTION
Box Buddy® low voltage mounting rings are designed for positioning low voltage devices next to 110 VAC electrical boxes with standard NEC spacing so that the combined 110 and low voltage device(s) may be covered with one multi-gang coverplate for an elegant appearance. The Box Buddy® uses a patent pending pull-off alignment tool that makes combined installation and alignment of 110 VAC and low voltage devices simple and quick. Box Buddy® low voltage mounting rings feature conduit flanges off-set by 5/8" which enable unobtrusive use of conduit connectors.


 FEATURES
Combination Speaker Locator & Single Gang Mounting Ring
The MR-1 is a combination speaker locator – mud ring. It utilizes a
unique group of features making it very useful & cost effective.
Made from ABS flame retardant plastic, UL 94V-0 compliant
See diagram - Notice the score line between the two sets of mounting holes.
When used as a speaker locator, fastened to a truss, ceiling joist or wall
stud (member), it should be positioned such that the score is aligned with
the edge of the member so it may easily “snapped” off at such time a speaker
is to be mounted.
After the sheetrock, but before a speaker is mounted, the small opening
is covered by the MR-CVR. The MR-CVR has the aesthetically acceptable
look of an electrical box cover waiting for a light or ceiling fixture.
Once the mud-rings are snapped off for speaker installations, the remaining
piece should be salvaged and used for volume control or keypad locations.
Sold and shipped individually


 RELATED ITEMS


MR-CVR - Cover Plate - Thumb


  Round Metal Cover Plate
for the MR-1




 DIMENSIONS & WEIGHTS
Dimensions: 6-1/2" W x 3-15/16" H x 7/8" D, (165W x 100H x 22D)mm
Cut Out: 2-1/4" W x 3-9/16" H
Shipping Weight: N/A
Net Weight:  N/A
