Shallow Loudspeaker Enclosure - ENC-816LP
ENC-816 Pictured with SC-800f

ENC-816LP Depth Detail
ENC-816
ENC-816LP Under Couch Detail
ENC-616
ENC-816LP Depth Detail
ENC-816

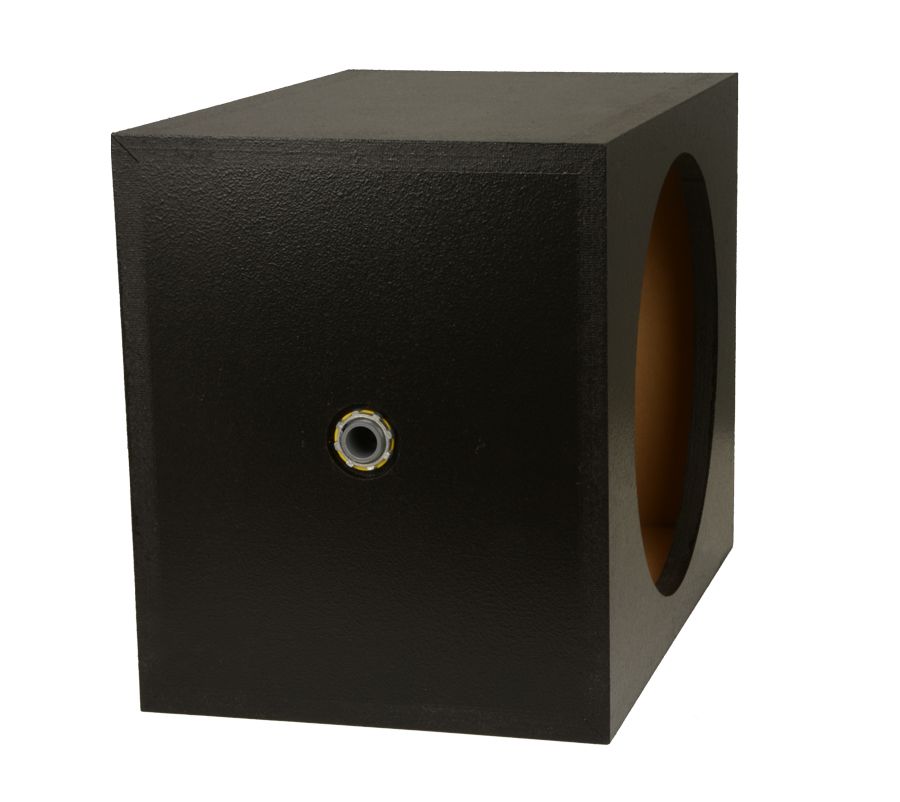

Connector Detail
ENC-816LP Under Couch Detail
ENC-616

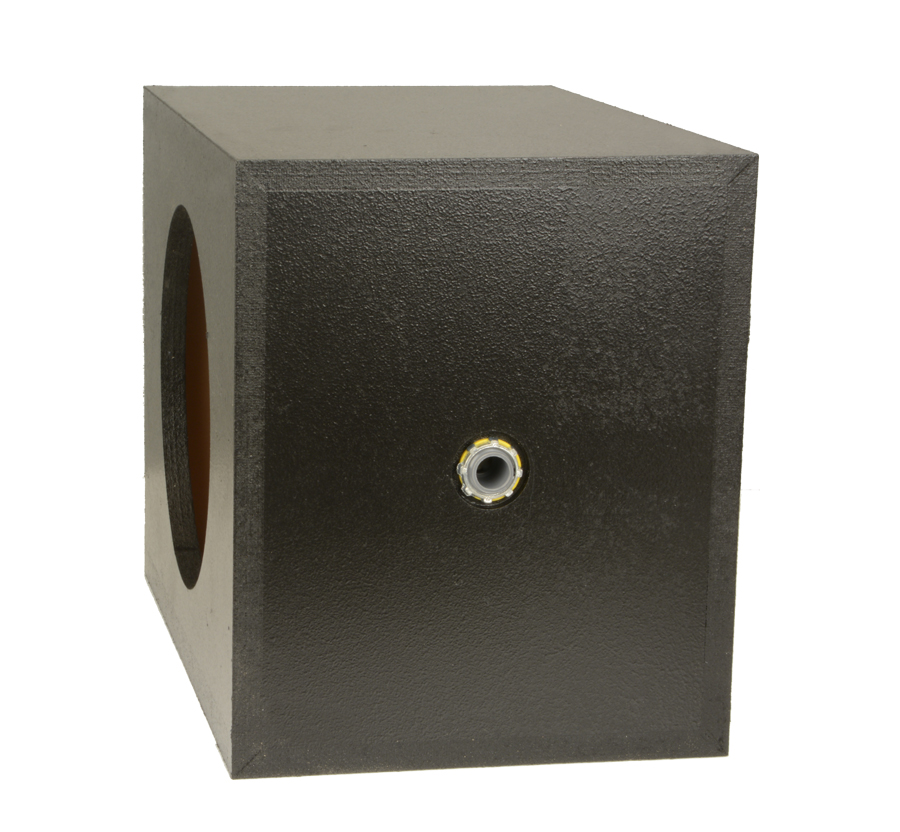

Connector Detail
ENC-IRA8 - Detail

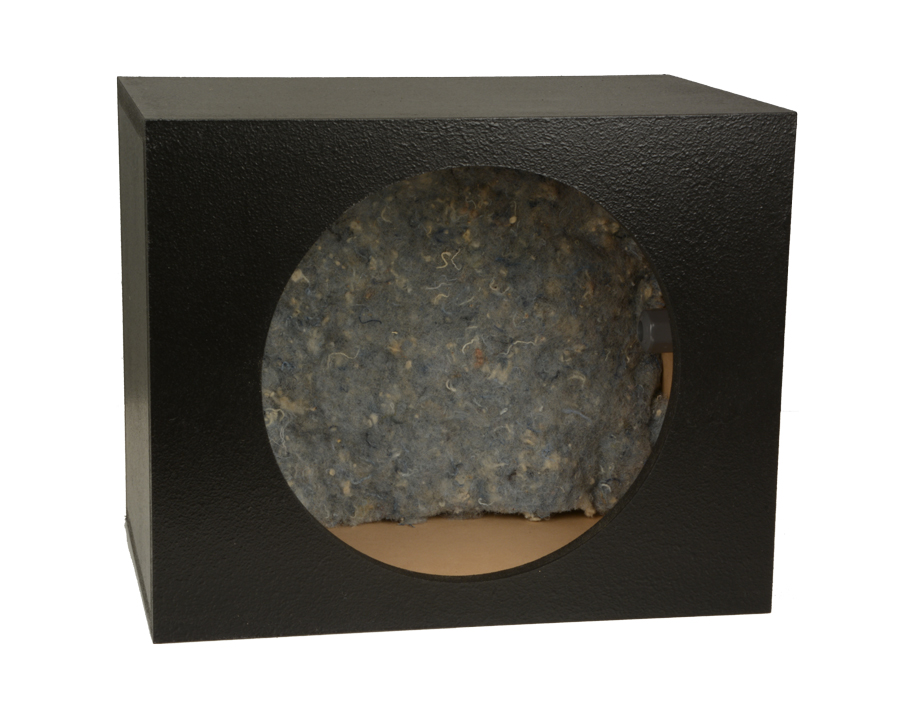

ENC-816

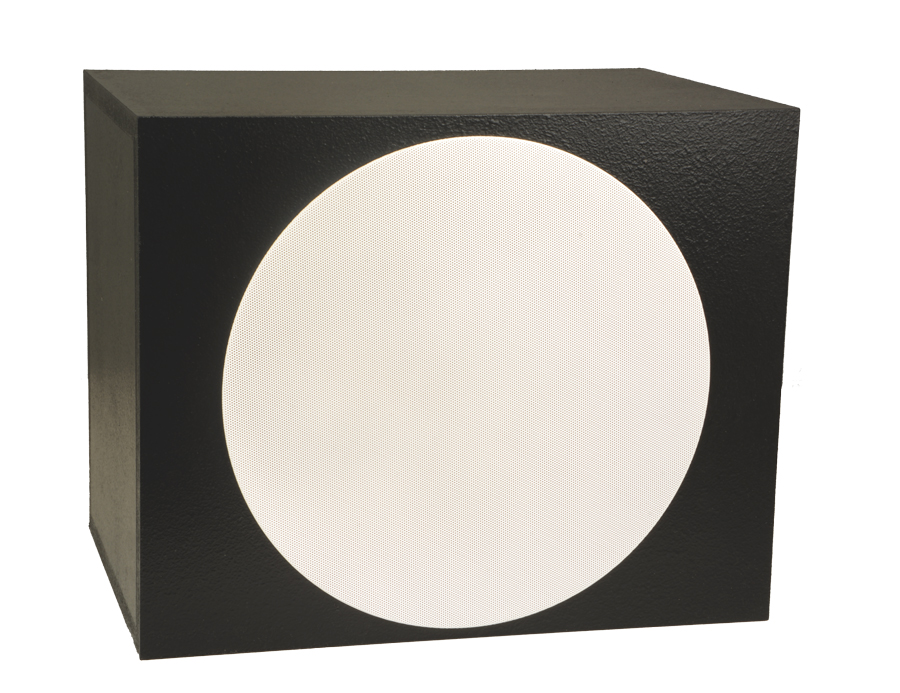

SC-800f with Grille
ENC-IRA8 - Detail

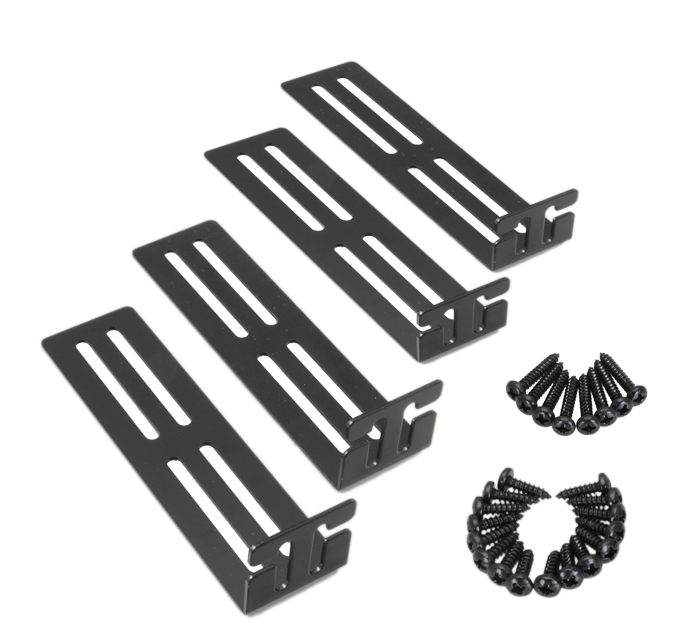

Optional Snap-Trac
Bracket Kit

- 4 Mounting Brackets
- 8 Mounting Screws
- 16 Bracket Screws
ENC-816LP Depth Detail

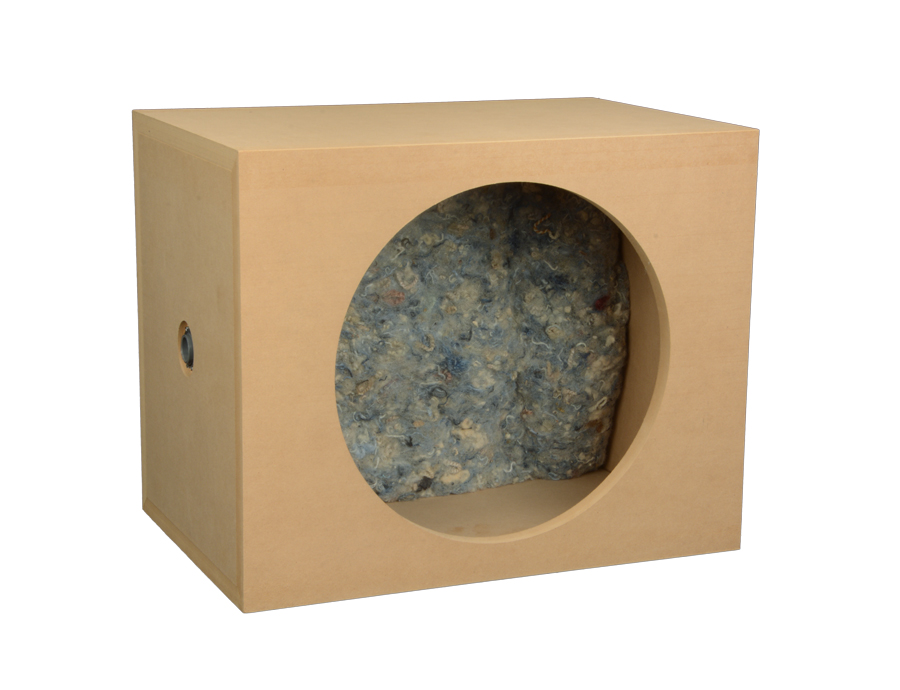

ENC-816R
Raw Enclosure
ENC-816LP Under Couch Detail

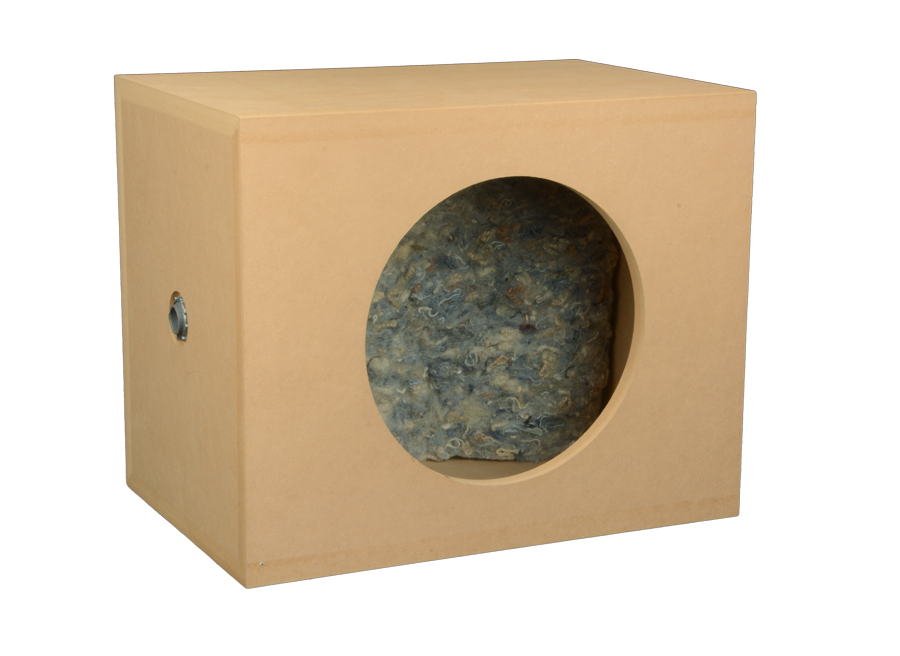

ENC-616R
Raw Enclosure


Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

MODEL: ENC-616 and ENC-816

Enclosure for 6-1/2" and 8" Loudspeakers and Subwoofers



 DESCRIPTION


 SPECIFICATIONS
Model Number: ENC-816
Mounting: You may screw enclosures directly to joists or use
Snap-Trac Bracket Kit (Sold separately ENC-SBK)
Volume: 16 Litres


 FEATURES
Sized to fit easily into 12" O.C. joists
Durable construction with heavily glued seams and joints
Raw version comes with shredded denim batting, foam strips
(for creating a seal between enclosure and drywall) and cord-grip connector.
The Painted version comes with cutout template and black gloss textured finish as well.


 DIMENSIONS & WEIGHTS
Overall Dimensions: 13"W x 10-1/2"H x 8-3/4"D (330.2 x 226.7 x 222.25) mm
ENC-616 Driver Cut-Out: 7-1/4" Diameter
ENC-816 Driver Cut-Out: 8-5/8" Diameter
Shipping Weight: 14.86 lbs. (6.74kg)
Net Weight:  8.10 lbs. (3.67kg)
