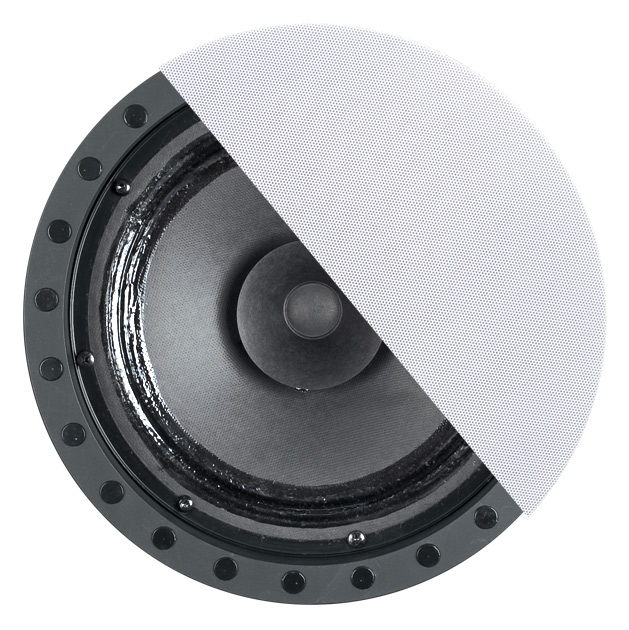

In-Ceiling Commercial Speaker, 8 inch - SC-800f

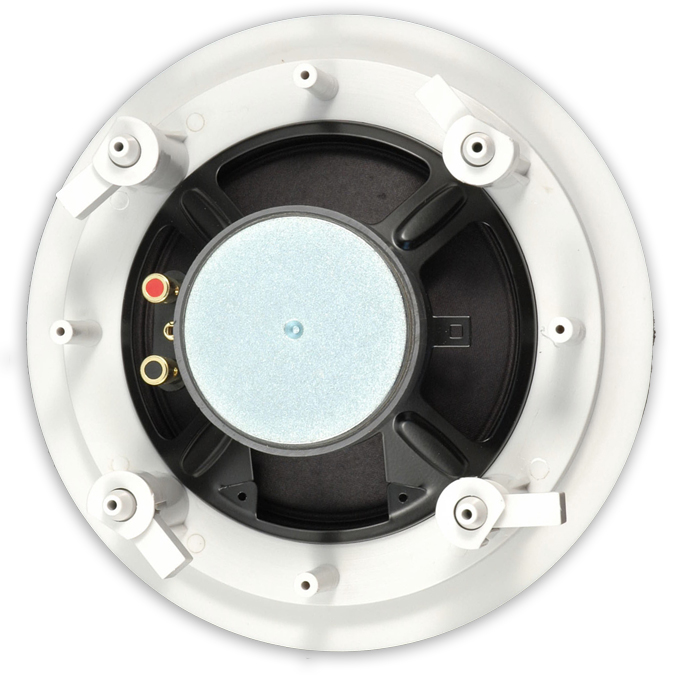

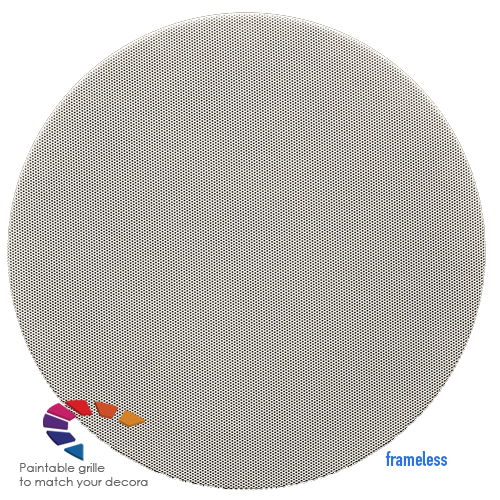

In-Ceiling Commercial Speaker, 8 inch - SC-800f - Rear Thumbnail Frameless Speaker Grille - MGR-8f - Thumbnail
MGR-8f

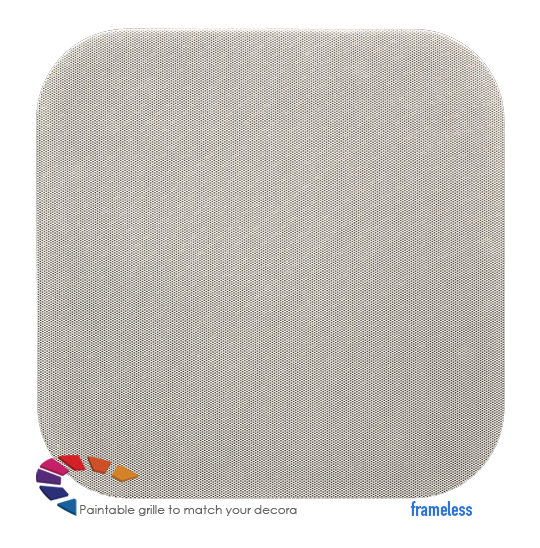

Frameless Speaker Grille - MGS-8f - Thumbnail
MGS-8f

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos

MODEL: SC-800f

8" In-Ceiling Commercial Loudspeaker frameless



 DESCRIPTION


 SPECIFICATIONS
Model Number: SC-800f - 8" Commercial Loudspeaker
Frequency Response: 60Hz - 5kHz ± 3 dB / 45Hz - 15kHz + 3 /-6dB
Power Handling: 40 watts max.
Sensitivity: 92dB 2.83 V @ 1m
Tweeter: (none) Dual Cone
Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
Round and Square option

Impedance: 8 ohms (70/100 volt transformer available)
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Quick spring post terminals
No Soldering or crimping required
Dog Ear Mounting
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eaches


 RELATED ITEMS


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9-7/8" Round
Cut-out Dimensions: 8-5/8" round x 3-5/16" deep
  Transformer mounting dimensions: 2-3/16" hole spacing
Shipping Weight: N/A
Net Weight:  N/A
