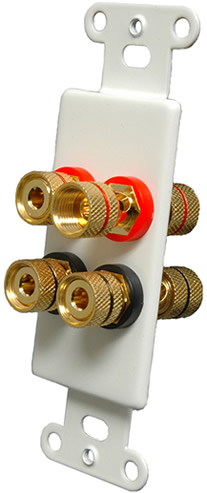

MODEL: IWM-4BPG

Solderless Binding Post Jack Plate

Amplifier / Speaker Inlet / Outlet

DESCRIPTION

2 Pair of 5-Way Binding Posts on Decora® Style Jack Plate. Double-ended 5-Way Binding Posts with solderless connection on both front and back. Provides pass-through connection for amplified speaker signals. Durable Metal Construction with color-coded plastic insulators. Gold plating assures long life and freedom from corrosion.

2 red & 2 black 5-Way Binding Post. Will accept bare wire up to 8 gauge, large Spade Lugs or Banana Plugs, as well as any combination of the three. Connector will accept full length banana plugs, both front & rear simultaneously. This plate will install in most standard “J” Boxes and Plaster Rings.

5-way BINDING POSTS gold plated - Premium SOLDERLESS accepts wire to 10 gauge, spade lugs or banana plug front & back

SPECIFICATIONS

Model Number:	IWM-4BPG - Solderless Binding Post Jack Plate

Pre-Made / In-Stock Available Colors:
White, Ivory (i), Almond (a), Black (bk), Brown (bn) & Gray (g)

INSTALLATION NOTES

Use crimp-on or screw-on type Banana plugs or bare wire for rear terminations.

Refer to a qualified technician if in doubt as to specific wiring details.

Understand that improper wiring may damage associated equipment.

Use speaker wire which is CL2 or CL3 rated.
