Product Line - Pro-Wire

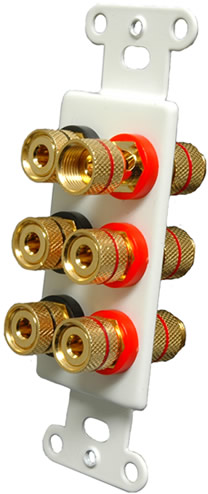

MODEL: IWM-6BPG

Solderless Binding Post Jack Plates

Amplifier / Speaker Inlet / Outlet



 DESCRIPTION
3 Pair of 5-Way Binding Posts on Decora® Style Jack Plate. Double-ended 5-Way Binding Posts with solderless connection on both front and back. Provides pass-through connection for amplified speaker signals. Durable Metal Construction with color-coded plastic insulators. Gold plating assures long life and freedom from corrosion.

3 red & 3 black 5-Way Binding Post. Will accept bare wire up to 8 gauge, large Spade Lugs or Banana Plugs, as well as any combination of the three. Connector will accept full length banana plugs, both front & rear simultaneously. This plate will install in most standard “J” Boxes and Plaster Rings.

5-way BINDING POSTS gold plated - Premium SOLDERLESS accepts wire to 10 gauge, spade lugs or banana plug front & back

Solderless Logo



 SPECIFICATIONS
Model Number: IWM-6BPG - Solderless Binding Post Jack Plate

Pre-Made / In-Stock Available Colors:
Pro-Wire Jack Plate - Special Colors w i laPro-Wire Jack Plate - Special ColorsWhite, Ivory (i), Almond (a), Black (bk), Brown (bn) & Gray (g)


 INSTALLATION NOTES
Refer to a qualified technician if in doubt as to specific wiring details.
Understand that improper wiring may damage associated equipment.
Use speaker wire which is CL2 or CL3 rated.


 RELATED ITEMS


 DIMENSIONS
Pro-Wire Blank Plate Dimensions - Thumbnail
