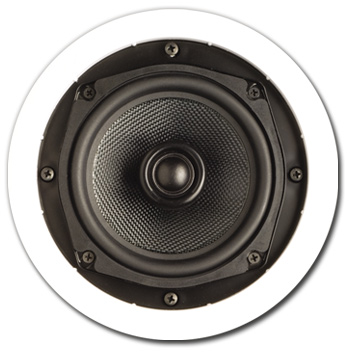

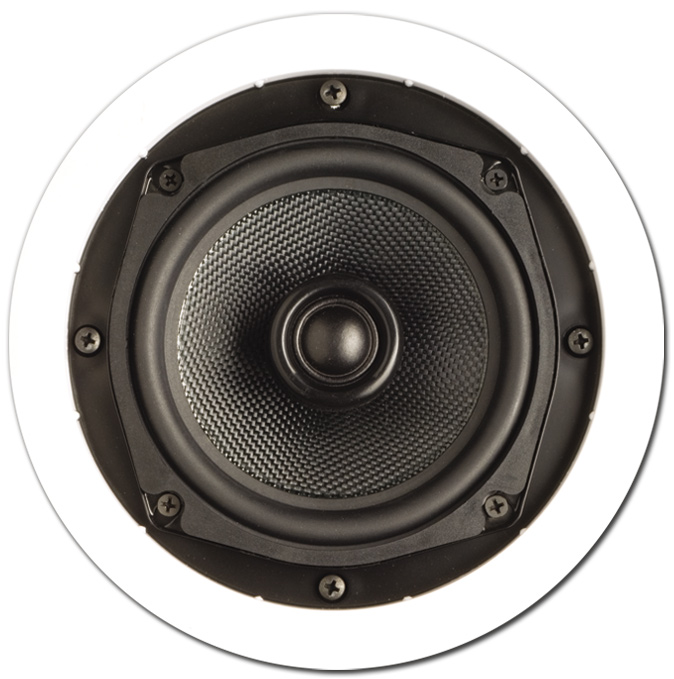

In-Ceiling Speaker, 2 way,  5-1/4 inch - A-505


Round Speaker Grille - Thumbnail

Downloads


Lifetime Limited Warranty

CEDIA and RoHS Logos



MODEL: A-505 (Discontinued)

5-1/4" 2-way In-Ceiling Loudspeaker



 DESCRIPTION
Presence represents a new level of performance and value in In-Wall and Ceiling loudspeakers.
Our signature Lifetime Limited Warranty ushers in these straight forward no-nonsense loudspeaker systems. Practical engineering and the best materials available are present throughout this comprehensive and well thought-out product line. The Presence line is known namely by its cones made from genuine DuPont Kevlar® fiber with butyl rubber surrounds & ferro-fluid cooled silk dome tweeters. Midrange drivers, thick fiberglass crossover network PC boards populated with high-grade electronic components, over-drive tweeter protection, heavy gauge oxygen-free copper wiring and stout gold plated high tension connection terminals are other features of the Presence line.


 SPECIFICATIONS
Model Number: A-505 - 5-1/4" 2-way Round In-Ceiling Loudspeaker
Frequency Response: 50Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" Silk soft dome pivoting tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:


 FEATURES
Woven Kevlar® woofers with butyl rubber surrounds
High temperature Polyimide voice coils
High-grade crossovers
Polyswitch overdrive protection
Proven Mounting System
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 7-1/2" Round
Cut-out Dimensions: 6-1/2" Round x 2-3/8 deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
