MODEL: AW-100WV-B

Outdoor Rotary Volume Control w/ Box

DESCRIPTION

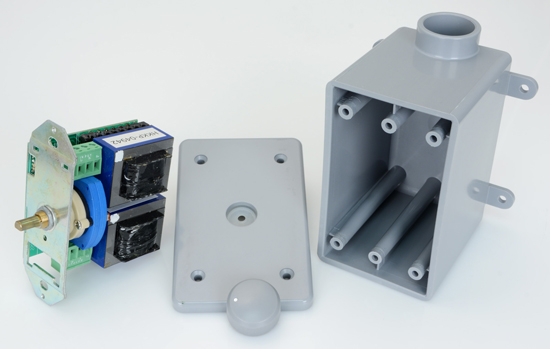

The AW-100WV-B is a 100 watt outdoor surface-mount volume control with enclosure. The AW-IMP100WV-B impedance matching volume control is identical with the exception that it can be configured to maintain a safe system load when multiple controls and speakers are connected. These controls utilize autoformers to efficiently transfer the power from amplifier to speaker. Autoformers are the electrical equivalent to a gearbox in an automobile with each of the 12 volume positions a different gear. It is common to use these controls with outdoor landscape speakers.

AW-1 surface-mount box included.

SPECIFICATIONS

Model Number:	AW-IMP100WV-B Outdoor Rotary Volume Control
Frequency Response:	20-20 kHz +/- 0.5dB
Available Colors:	Gray Box
Power Handling:	100 watts max per channel
Impedance:	Optimized for 8 ohm speakers

FEATURES

Autoformer w/ Rotary 12 position switch

Smooth transition between volume steps

12-tap, high-grade 100-watt autoformer

Stereo Control (Can be used in Mono Applications.)

Quick-Connect Euro Plugs make hook-up a breeze

Gasket & Screws Included

Suitable for residential & commercial applications

Sold and Shipped Indivsidually

DIMENSIONS & WEIGHTS

Overall Dimensions:	3-3/4" D
Internal Box Depth:	3-1/4" D
Shipping Weight:	2 lbs
Actual Weight:	1.65 lbs
