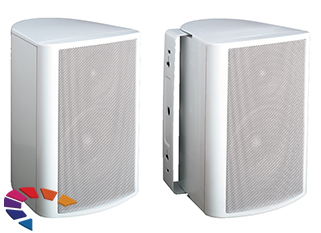

Endeavor Cabinet Speaker - IO-505


Endeavor Cabinet Speaker - IO-505 - Bass EQ Detail
Indoor / Outdoor
Bass EQ
Endeavor Cabinet Speaker - IO-505 - End Cap Detail
Solid and Notched
End Caps

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Endeavor

MODEL: IO-505 *Discontinued*

5-1/4" 2-way Cabinet Loudspeaker



 DESCRIPTION
The IO-505 Indoor / Outdoor speakers are designed to stand up to the elements with rust proof grilles that look good and sound great.

5-1/4" Dupont® Kevlar woofer with butyl rubber surround
5-1/4" 2-way acoustic suspension loudspeaker


 SPECIFICATIONS
Model Number: IO-505 - 5-1/4" 2-way Cabinet Loudspeaker
Frequency Response: 40Hz - 21kHz ± 3 dB
Power Handling: 50 watts nom. 100 max
Sensitivity: 87dB 1 watt / 1 meter
Tweeter: 1" Tetoron® soft dome pivoting tweeters
Grille: Rust proof Perforated Aluminum Grille which is epoxy painted
  for long life in high humidity and salt air environments.
Cabinets, grilles and mounting brackets are paintable to match your decor.
Impedance: 8 ohms nominal
Available Colors: White (IO-505W)


 FEATURES
Sealed, port-less design enclosure prevents bugs and moisture from entering cabinet.
The IO-505, 605 and 805 include Indoor / outdoor bass equalization
Versatile mounting options, includes standard type "U" bracket, and mounting bosses
on rear for optional double swivel mounting brackets
Suitable for use on book shelves with bracket-less finished look
Sold and Shipped in Pairs
IO-505 Rear View

 RELATED ITEMS


SE-DBLSVL Thumbnail

  Double Swivel
Mounting Bracket




 DIMENSIONS & WEIGHTS
Enclosure: 7-1/4" W x 10" H x 7-1/2" D
  mounting bracket increases depth by 3/4"
Shipping Weight: 16 lbs. pair
Net Weight:  5.7 lbs. each
